H.D. 14GA Multi-Station 144" Wash up Sink | 065E144208R2

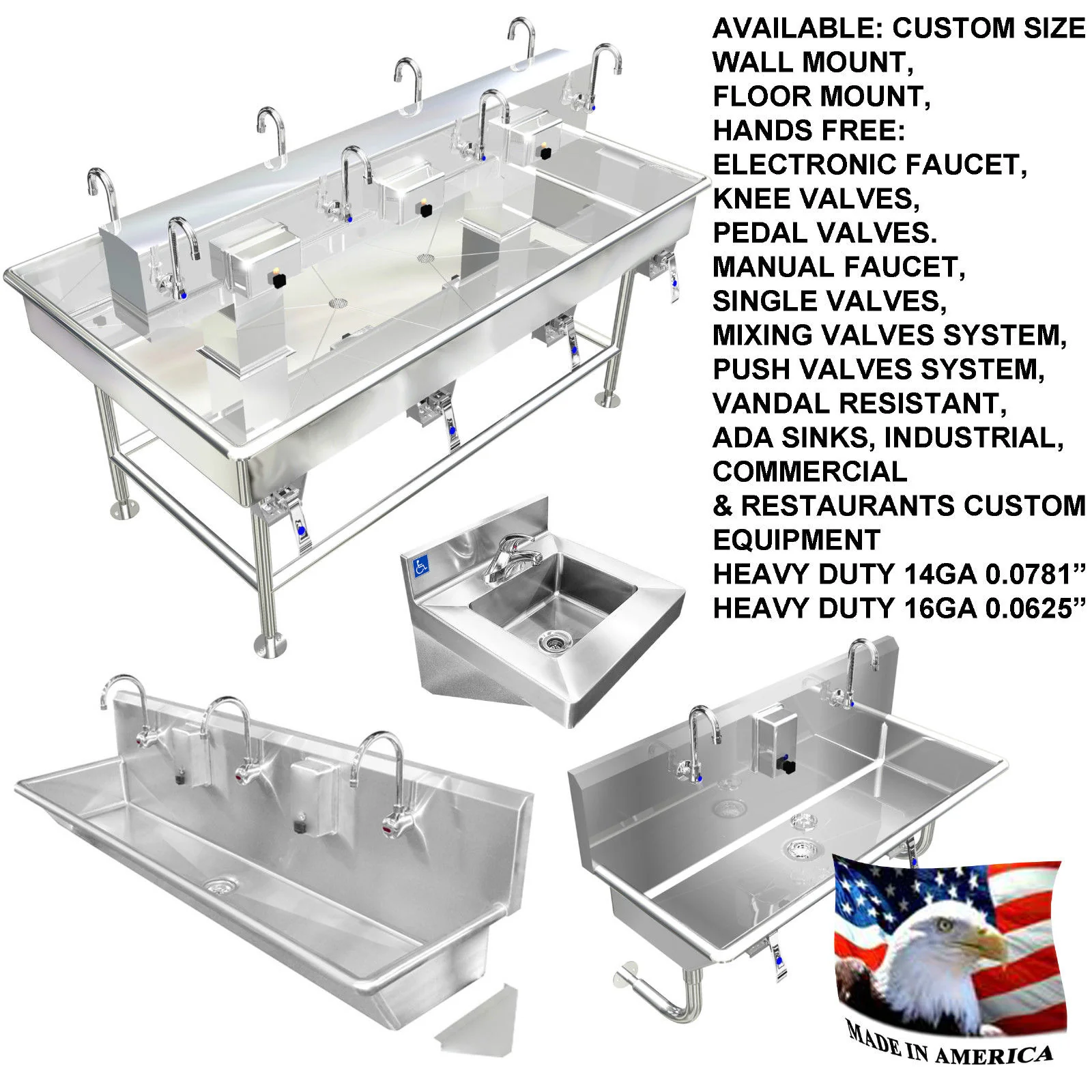

Shop our 144" model stainless steel sink. If you do not see an option you need, please call us! We can fabricate any sink needed.

Model numbers: 065E144208R2

Features

Our sinks are crafted with the highest materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.

• Made from 14 gauge (0.0781")  Heavy-Duty Stainless Steel Type 304 #4
• Made in The USA
• Fully seamless welded corners
• Fully polished to a brush finish No. 4

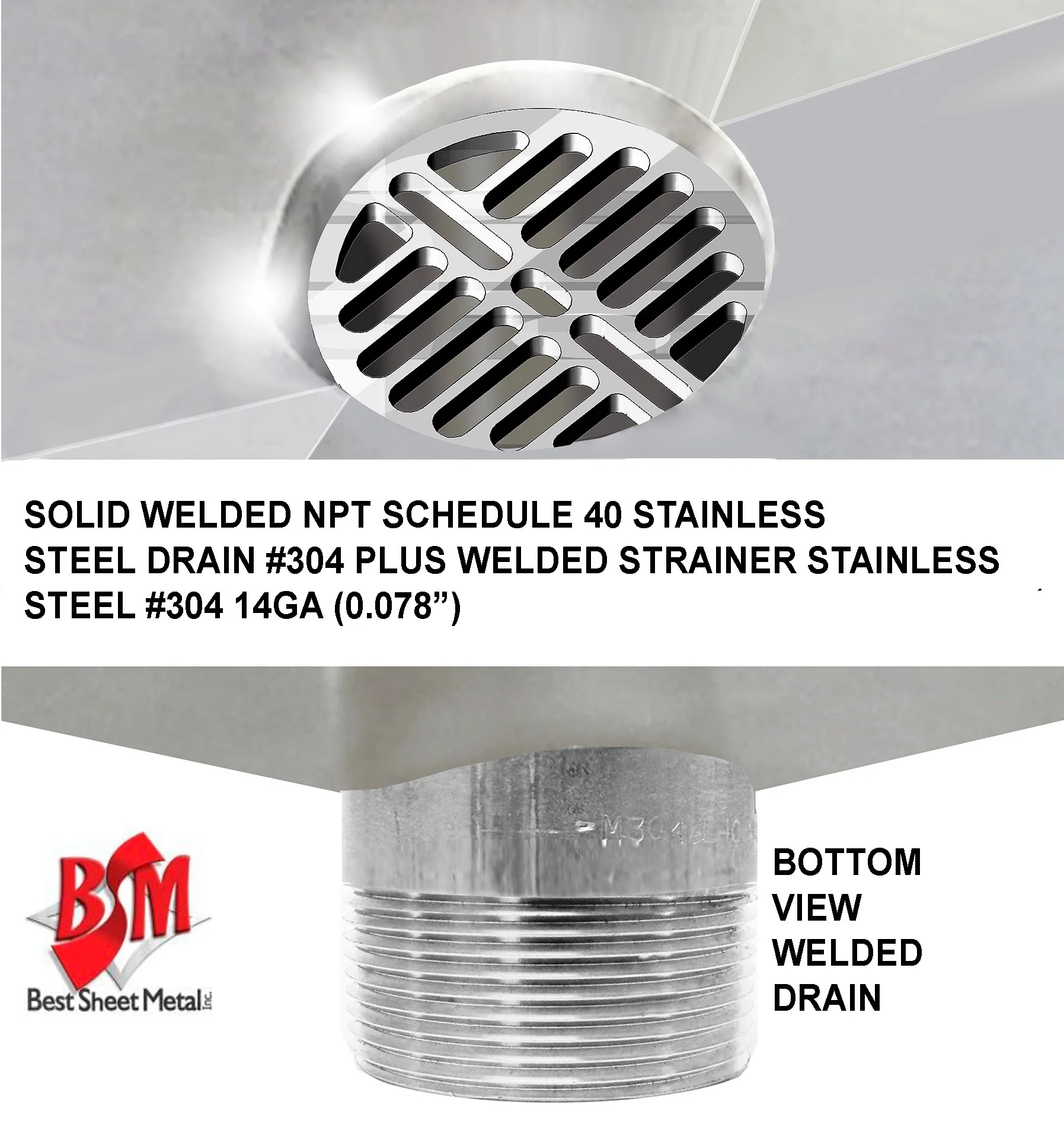

• Fully welded 1-1/2" with fixed screen
• ETL and NSF approved
• Includes Electronic Faucets
• Wall Mounted with round tube brackets

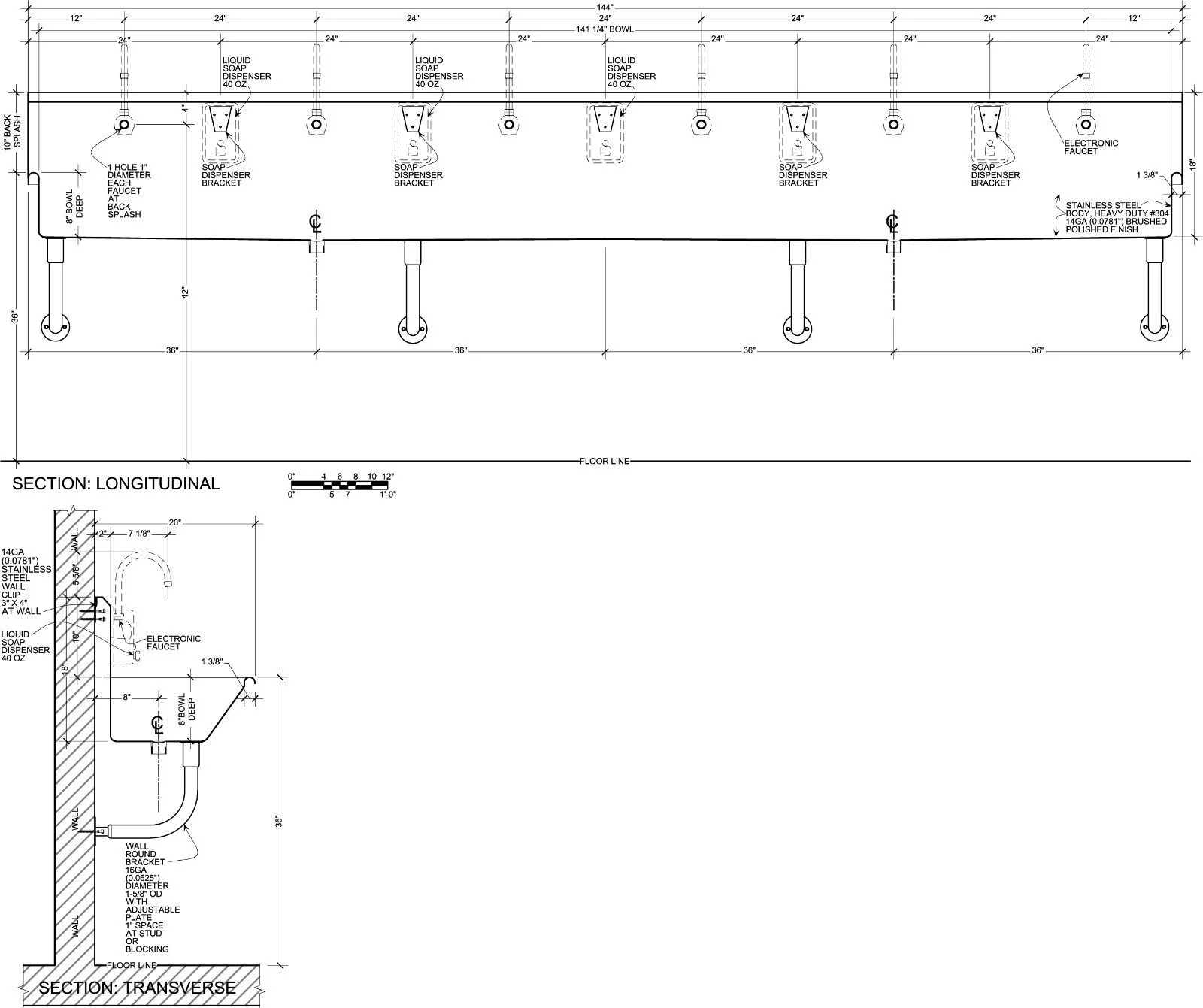

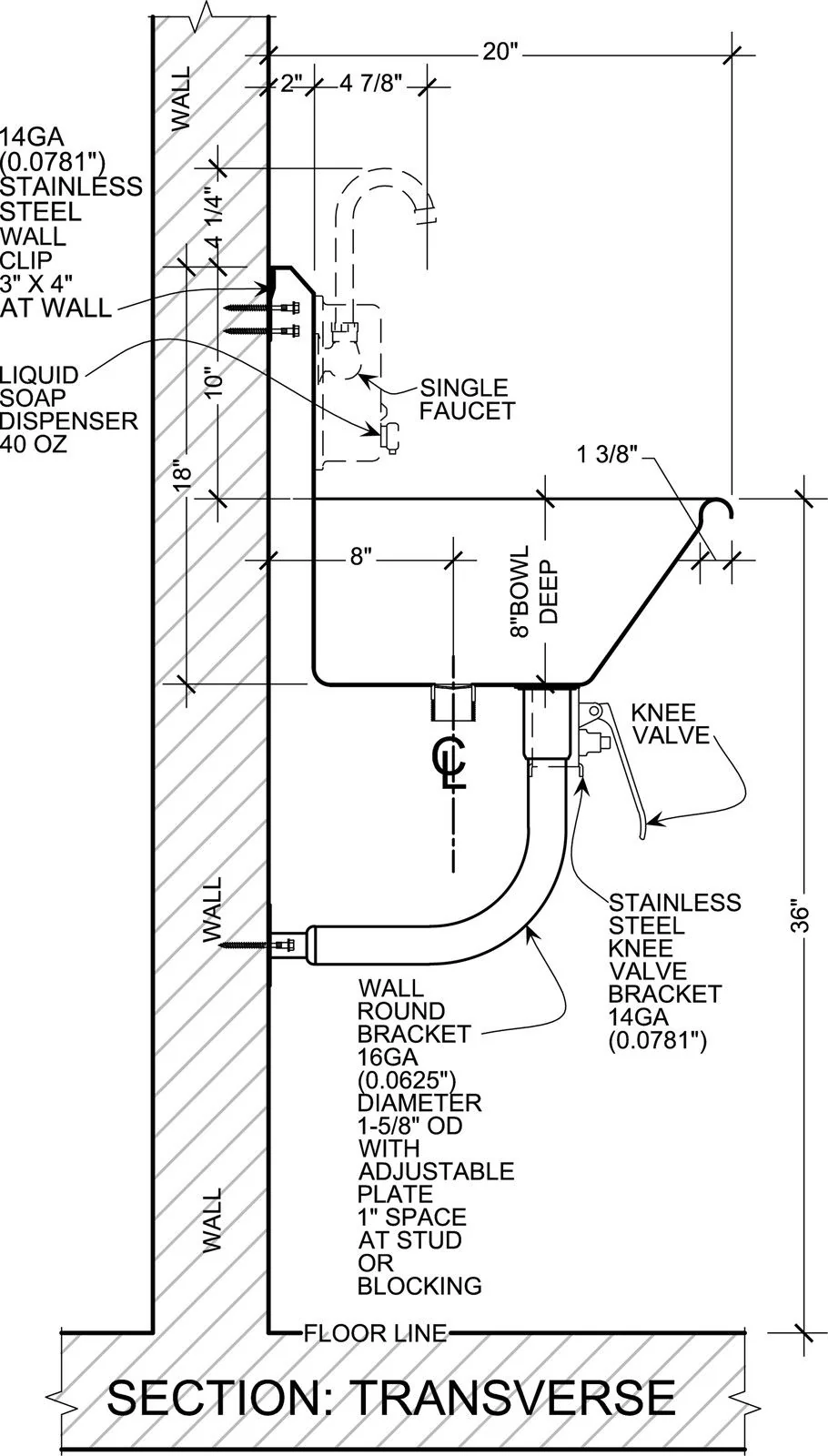

Dimensions

Sink dimensions for all varieties:

144" Long x 20" Wide x 8" Deep

Back Splash Dimensions for all varieties

144" Long x 20" Wide x 10" High

Accessories

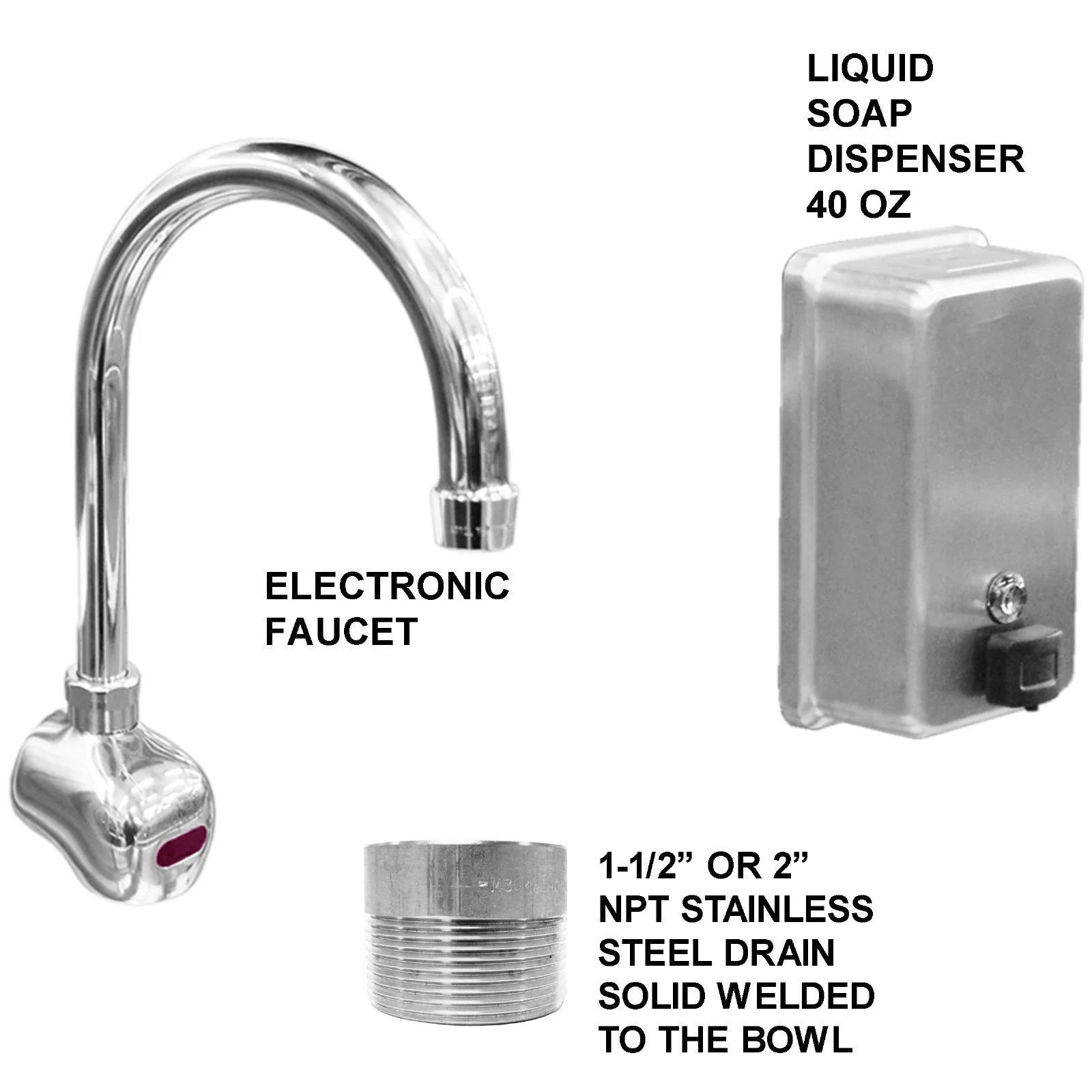

Electronic Faucet		Quantity 6:  Electronic Faucet                 (**COMPLIES WITH CALIFORNIA LAW AB1953-NO LEAD** ) Durable chrome plated brass faucet Low-battery indicator light, Sensor range adjustment Chrome plated tubular brass 6" gooseneck spout with swivel action AC/DC waterproof control module AA batteries (Not Included) 100-240 VAC adapter 90 Degree elbow Temperature hot & cold control mixing water valve Hot and cold supply lines Installation guide
Soap Dispenser		Quantity 5 40 Oz Stainless Steel Soap Dispenser Liquid Soap Only



All accessories have a 1-year limited warranty.

Mounting

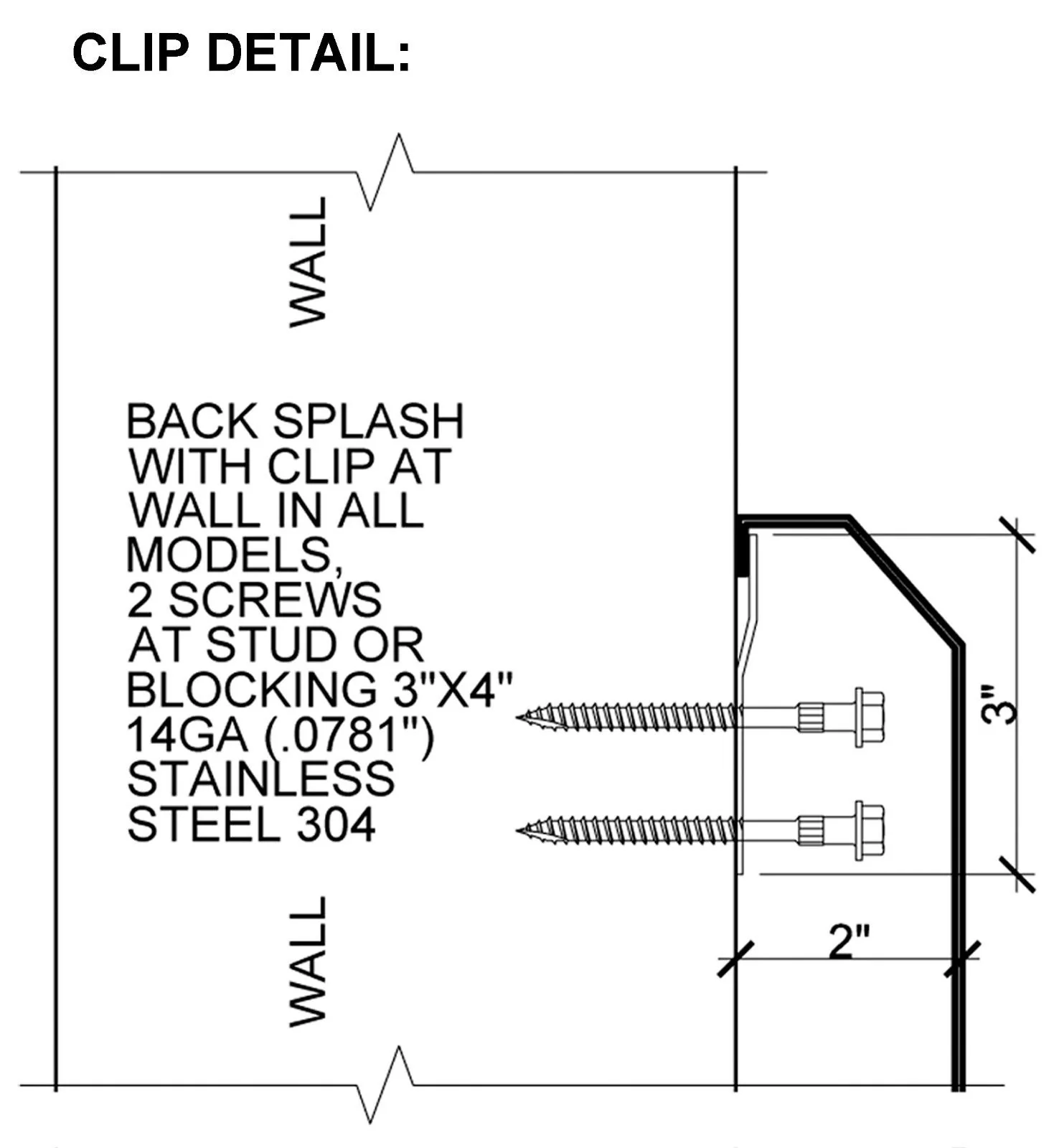

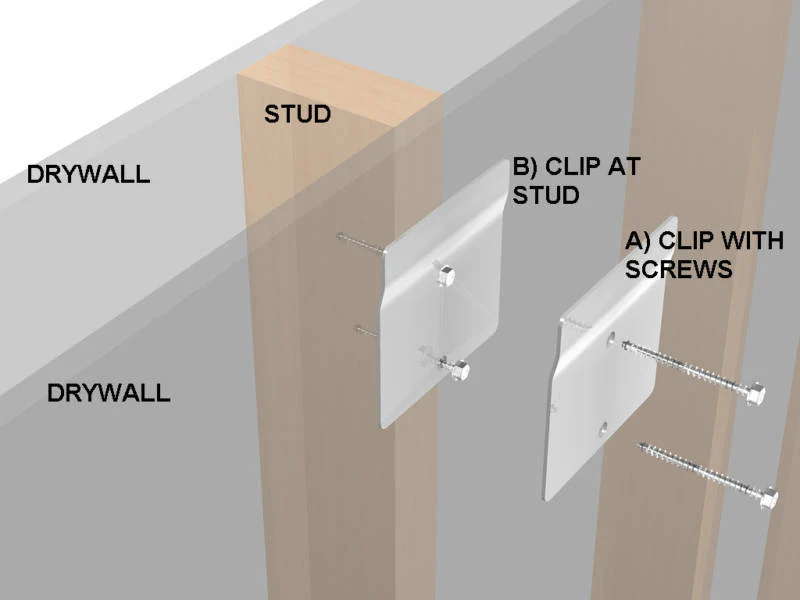

6	Stainless Steel Wall clips 3"x 4" 14 gauge (0.0781")

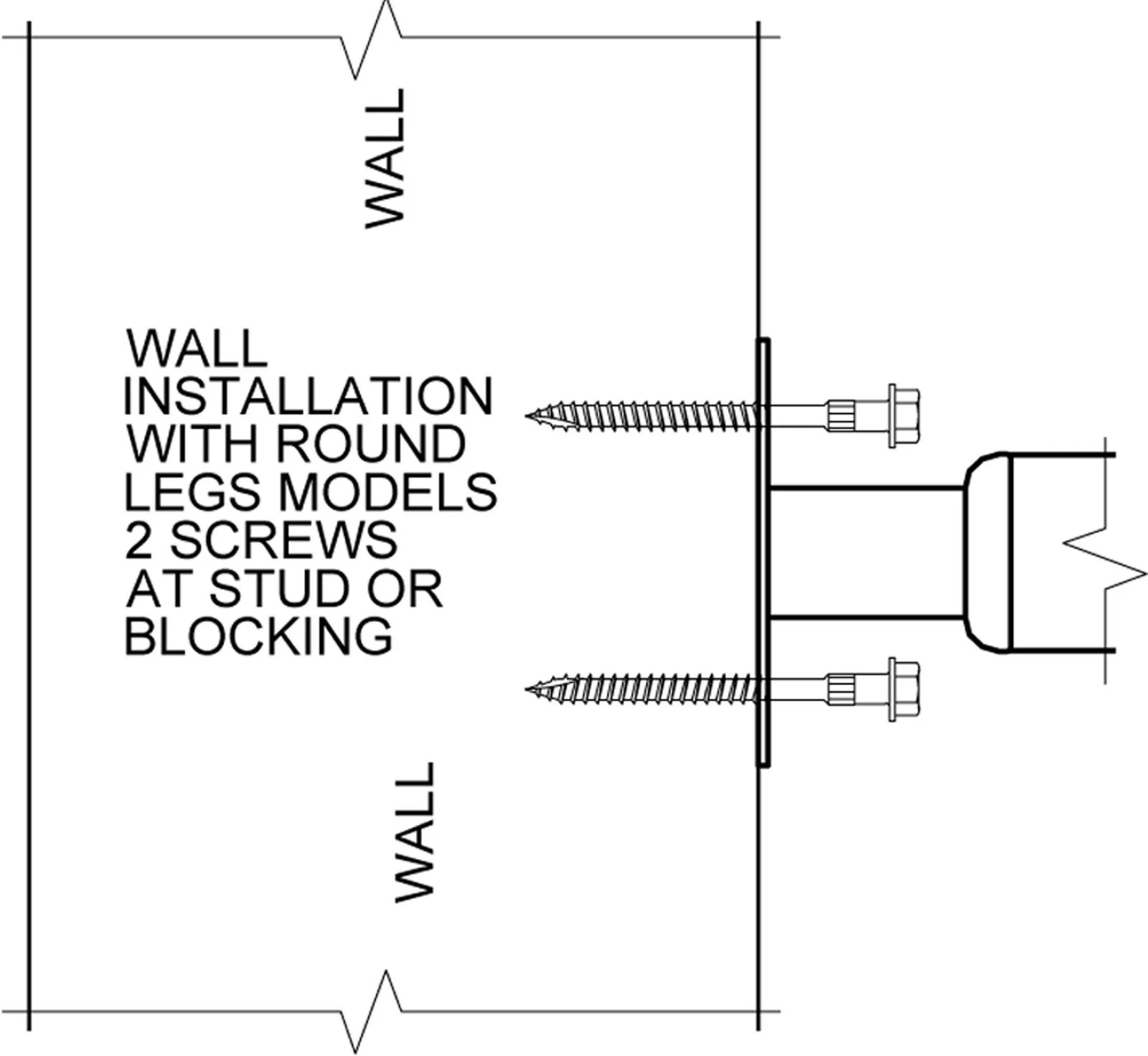

4	Stainless Steel Round Brackets (or Round Legs) diameter 1-5/8" OD 16ga (0.0625") with adjustable wall plate 1"
20	2-1/2" Standard screws

Shipping

Estimated Weight: 301 lbs

Estimated Shipping Dimensions: 150" Long x 25" wide 30" Height

Sinks are shipped via a third-party freight carrier and have standard shipping costs. This only applies to orders shipping to the U.S. mainland.

If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes
