H.D. 14 GA Multi-Station Wash up Sink, 144" | 065P144208C2

Shop our 144" model stainless steel sink. If you do not see an option you need, call us! We can fabricate any sink needed.

Model number: 065P144208C2

Features

Our sinks are crafted with the highest materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.

• Made from 14 Gauge Heavy-Duty Stainless Steel Type 304 #4
• Made in the USA
• Fully seamless welded corners
• Fully polished to a brush finish No.4

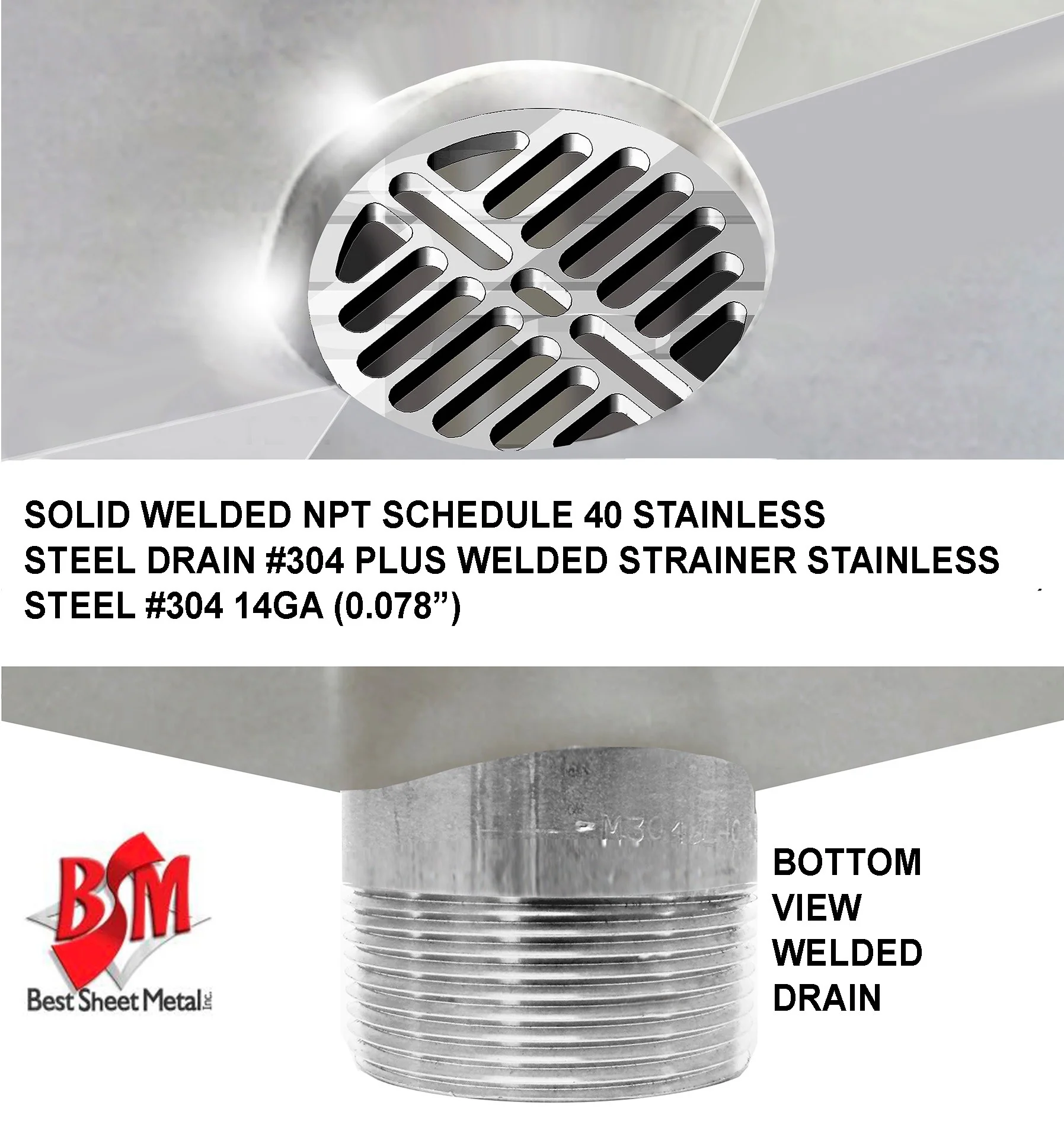

• Fully welded 1-1/2" Drain with fixed screen
• ETL and NSF approved
• Includes Foot Operated Valves and Soap dispensers
• Pedal Columns Included

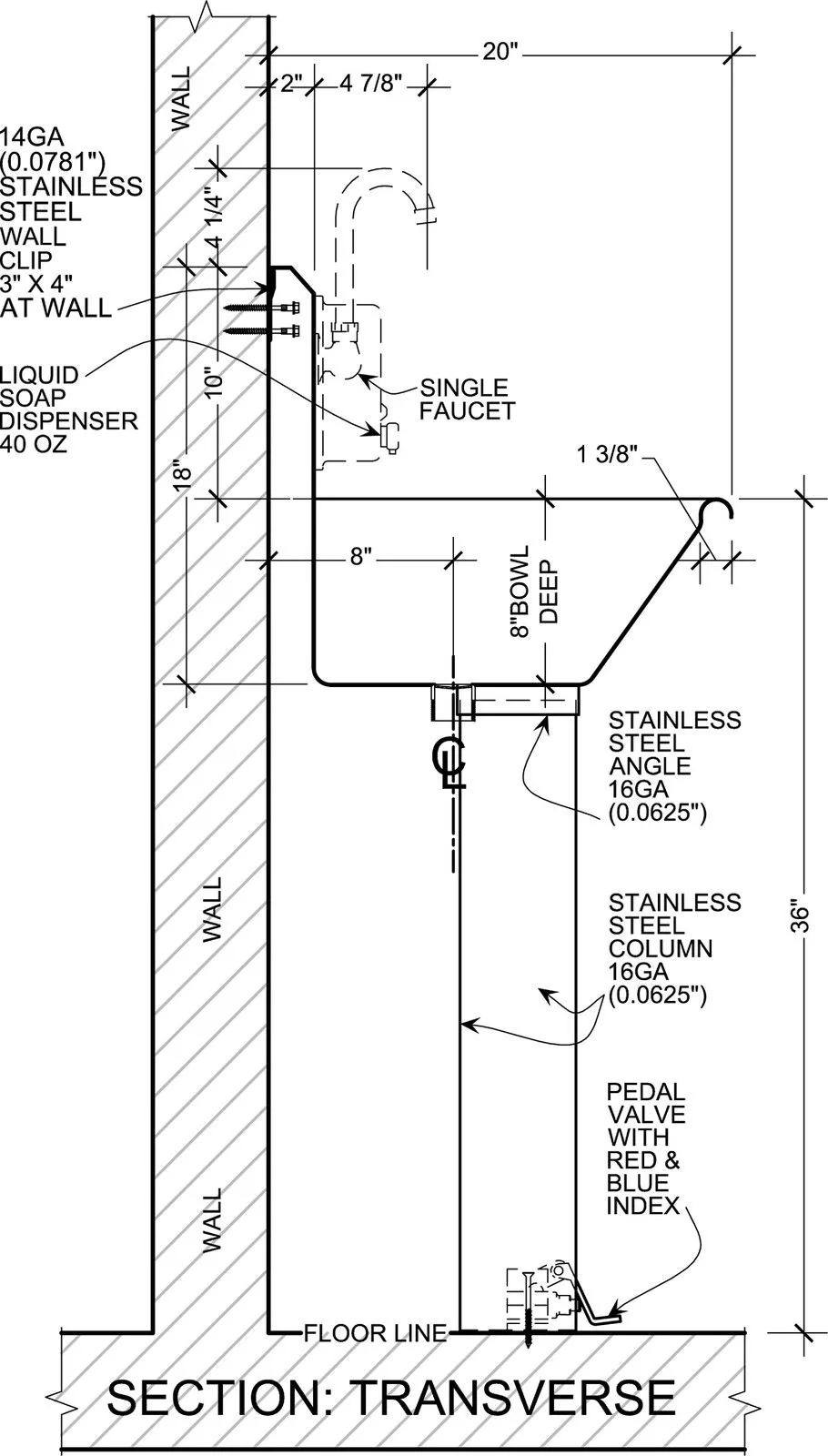

Dimensions

Sink dimensions for all varieties:

144" Long x 20" Wide x 8" Deep

Back Splash Dimensions for all varieties

144" Long x 20" Wide x 10" High

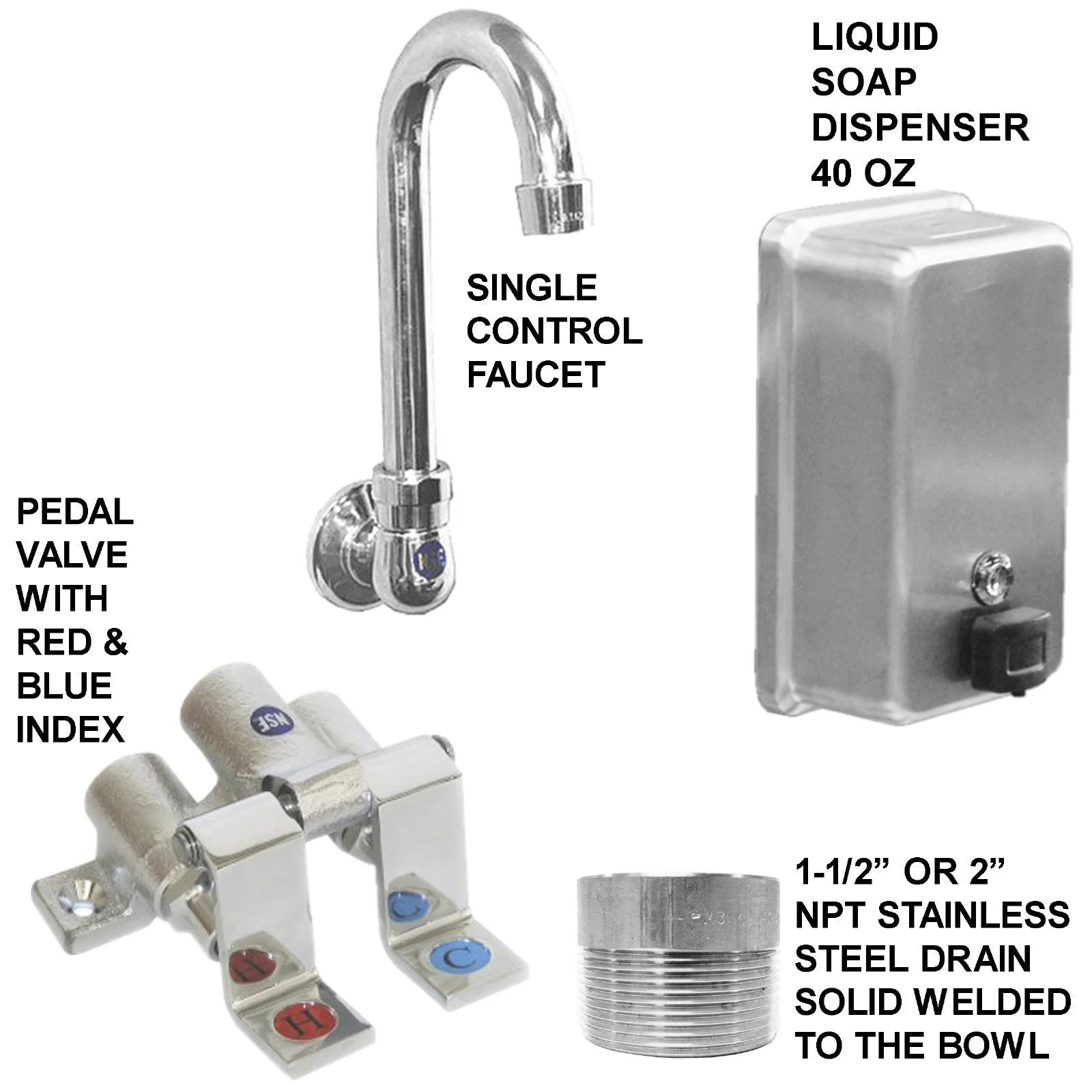

Accessories

Foot Operated Faucets		Quantity 6 each: Foot Double action valve Hands-Free Faucet Quantity 1:  Temperature hot & cold control mixing water valve
Soap Dispenser		Quantity 5 Stainless Steel 40 Oz Soap Dispenser Liquid Soap Only

All accessories have a 1-year limited warranty.

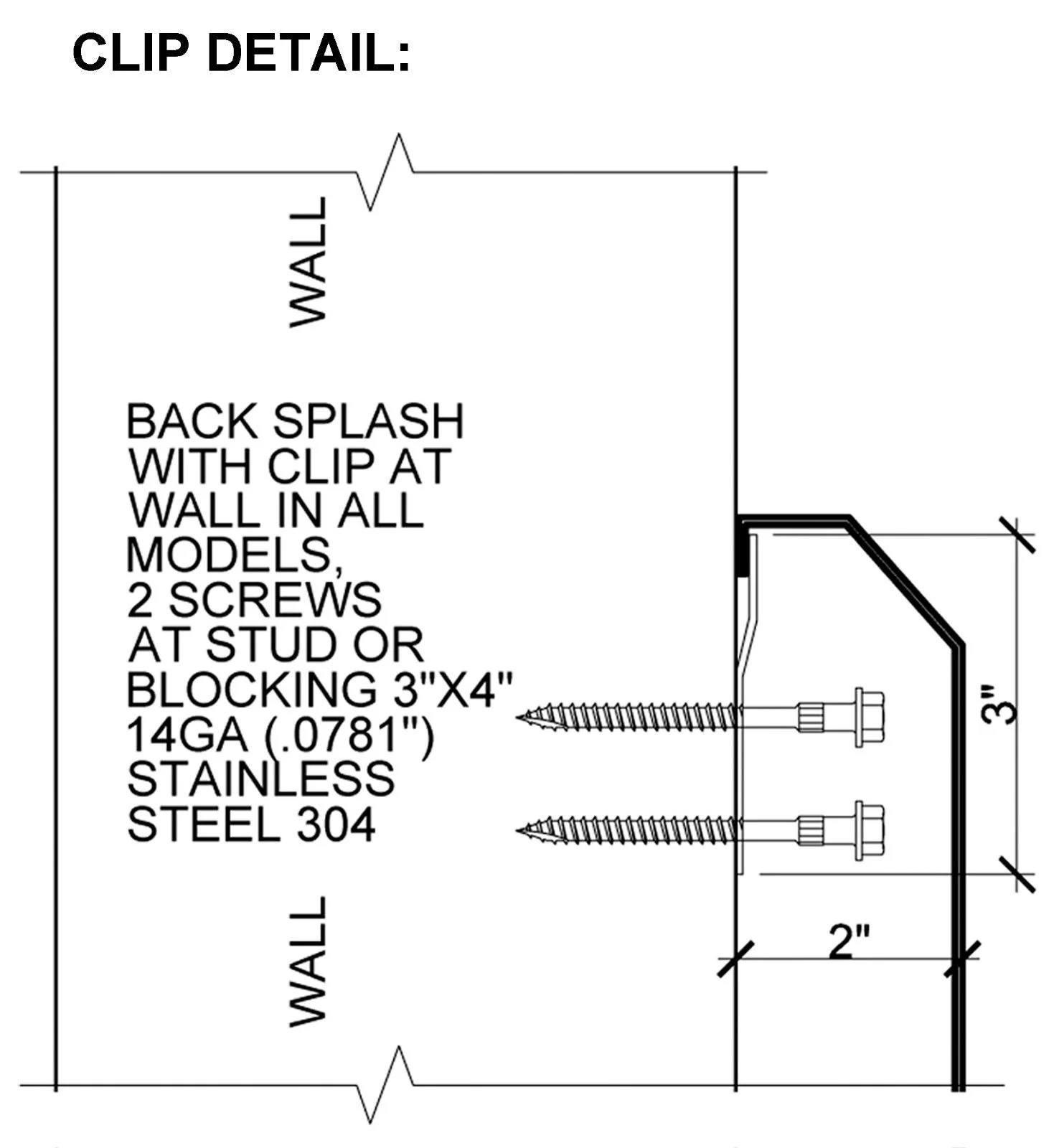

Mounting

6	Stainless Steel Wall clips 3"x 4" 14 gauge (0.0781")
6	Stainless Steel Columns 14 GA (0.078") with an adjustable level system on top
2	Screws for each pedal valve to the base column
4	Screws for each level system
12	2-1/2" Standard screws for clips

Shipping

Estimated Weight: 321 lbs

Estimated Shipping Dimensions: 150" Long x 25" wide 30" Height

Sinks are shipped via a third-party freight carrier and have standard shipping costs. This only applies to orders shipping to the U.S. mainland.

If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes.
