H.D. 14GA Custom Multi-Station Wash up Sink, 30" | ADA-211S302055SQB

Shop our ADA-compliant stainless steel sink line. If you do not see an option you need, please call us! We can fabricate any sink needed.

Model Number: ADA-211S302055SQB



Features

Our sinks are crafted with the highest materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.

• Sink Body Only
• Made from 14 Gauge Heavy-Duty Stainless Steel Type 304 (0.0781") #4
• Made in the USA
• Fully seamless welded corners
• Fully polished to a brush finish No. 4

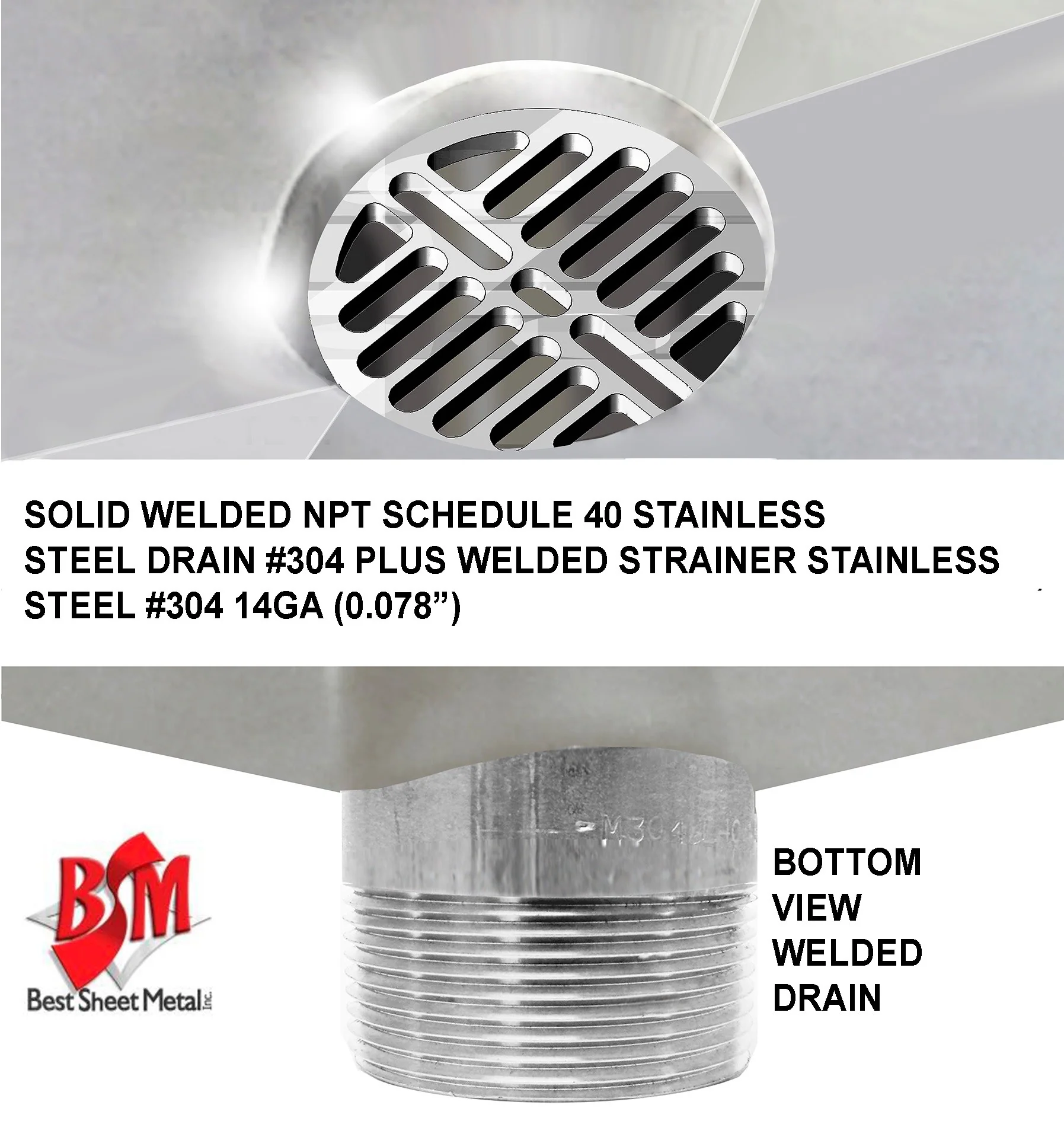

• Fully welded 1-1/2" Drain with fixed screen
• ETL and NSF Approved
• ADA Compliant

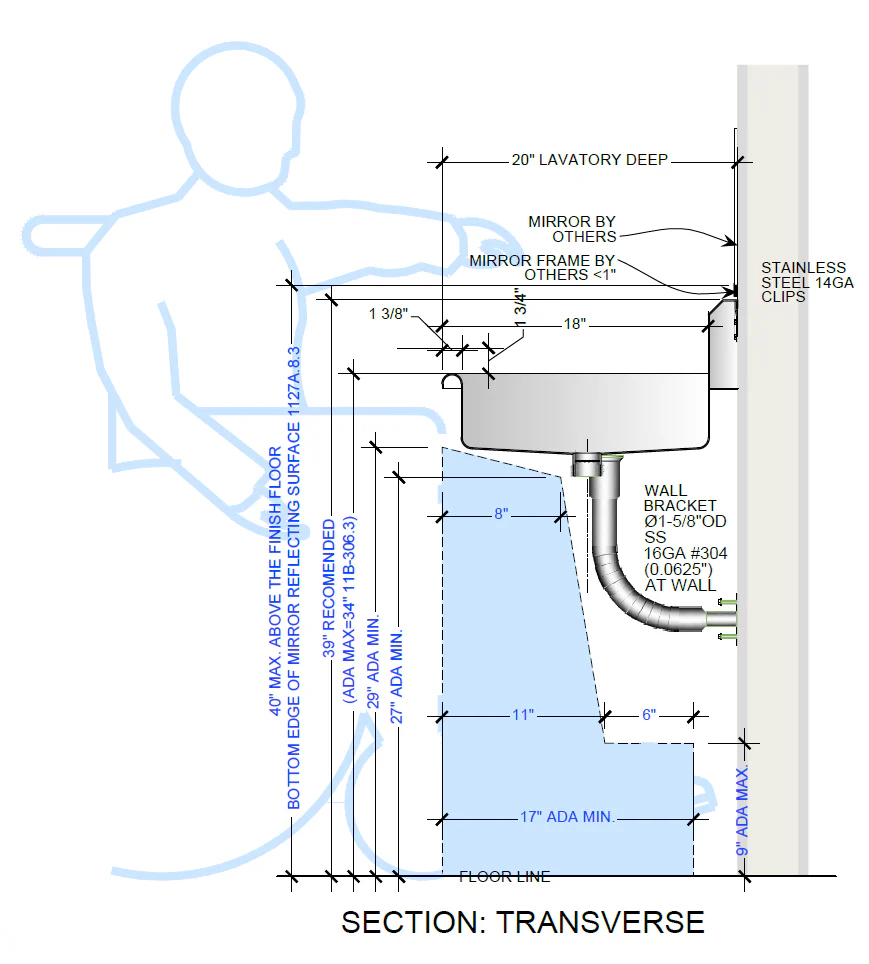

• With low profile backsplash for mirror ADA code 1127A.8.3.
• Total height 39" from floor to top of backsplash

Dimensions

Sink dimensions:

30" Long x 20" Wide x 4" Deep

Back Splash Dimensions

30" Long x 2" Wide x 6" High



Mounting



Mounting:

2	Stainless Steel Wall clips 3"x 4" 14 gauge (0.0781")
2	Stainless Steel Round Tubes diameter 1-5/8" OD 16ga (0.0625") with adjustable wall plate 1"
12	2-1/2" Standard screws

All accessories have a 1-year limited warranty.

Shipping

Estimated Weight: 70 lbs

Estimated Shipping Dimensions: 36" Long x 24" wide 29" Height

Sinks are shipped via a third-party freight carrier and have standard shipping costs. This only applies to orders shipping to the U.S. mainland.

If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes.
