H.D. 14GA Multi-Station Wash up Sink, 24" | ADA-110S242065B
Shop our ADA-compliant stainless steel sink line. If you do not see an option you need, please call us! We can fabricate any sink needed.
Model Numbers: ADA-110S242065B | ADA-210S242065B-8OC
Features
Our sinks are crafted with the highest materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.
- Sink Body Only
- Made from 14 Gauge Heavy-Duty Stainless Steel Type 304 (0.0781") #4
- Made in the USA
- Fully seamless welded corners
- Fully polished to a brush finish No. 4

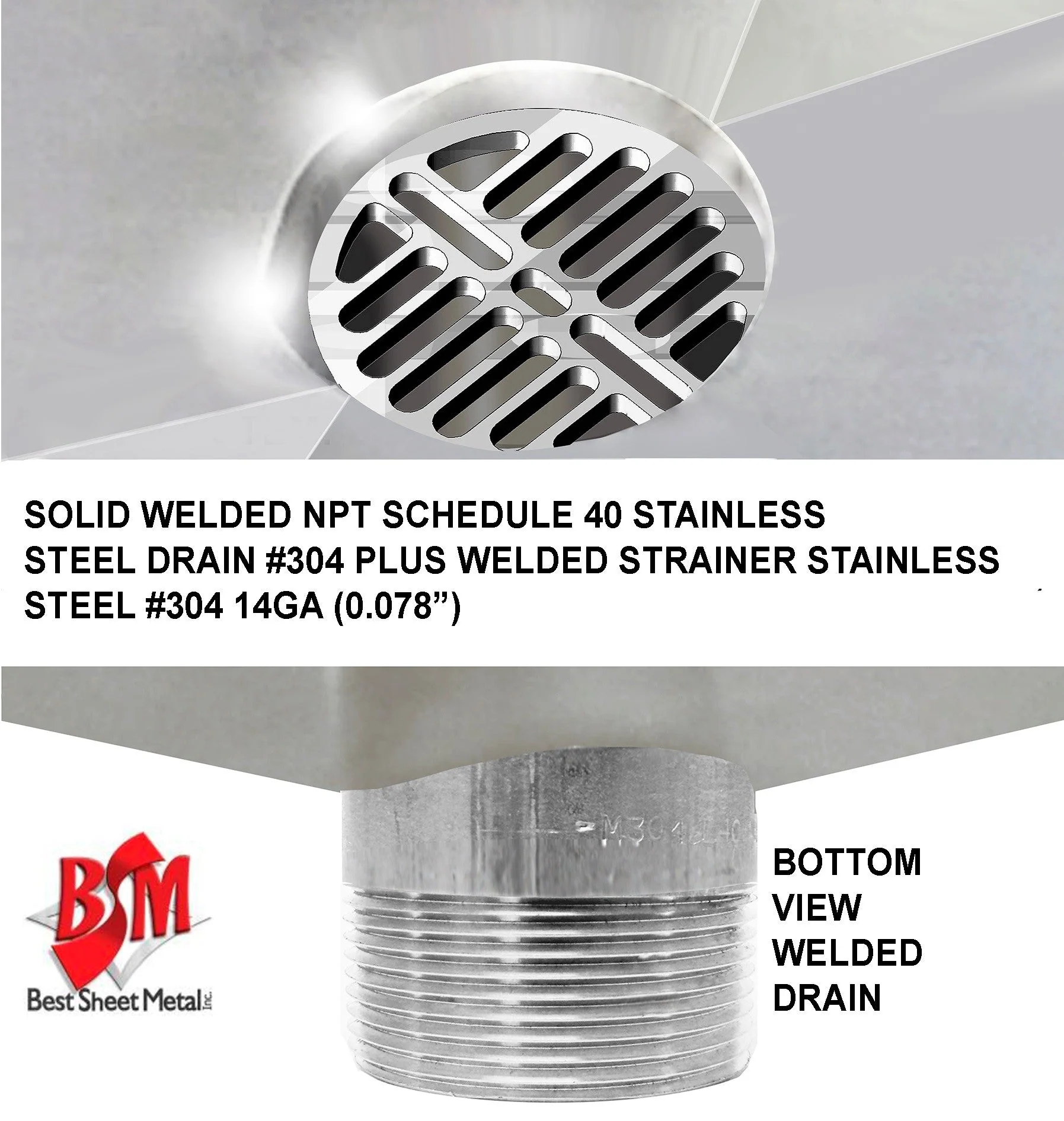

- Fully welded 1-1/2" Drain with fixed screen
- ETL and NSF Approved
- ADA Compliant
- With low profile backsplash for mirror ADA code 1127A.8.3.
- Total height 39" from floor to top of backsplash

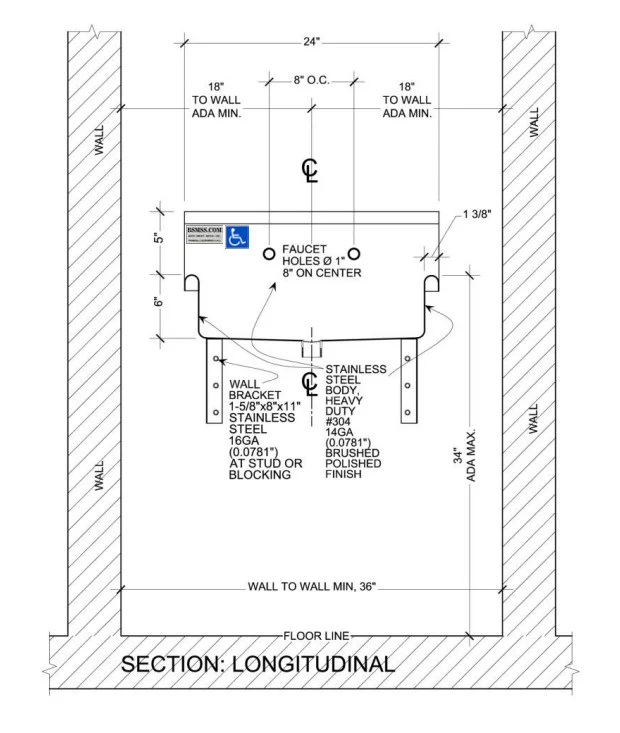

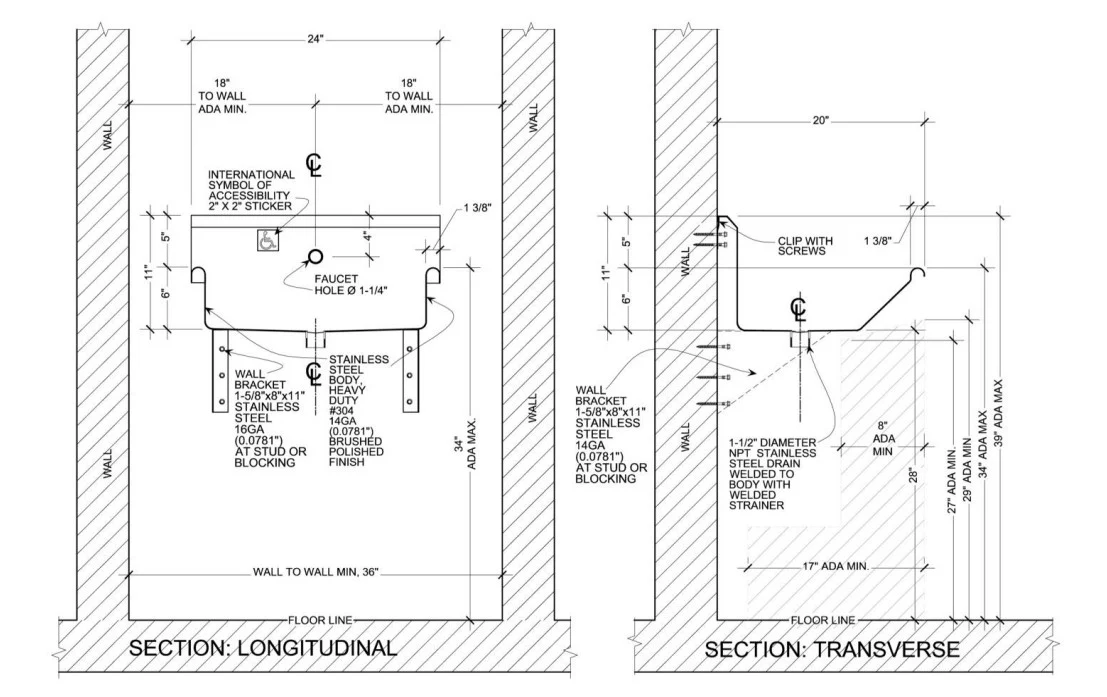

Dimensions
Sink dimensions:
24" Long x 20" Wide x 6" Deep
Back Splash Dimensions
24" Long x 2" Wide x 5" High
Mounting
Mounting:
|
2 |
Stainless Steel Wall clips 3"x 4" 14 gauge (0.0781") |
|
2 |
Stainless Steel Brackets 8" x 10" x 1-5/8" 16ga (0.0625") |
|
12 |
2-1/2" Standard screws |
All accessories have a 1-year limited warranty.
Shipping
Estimated Weight: 48 lbs
Estimated Shipping Dimensions: 24" Long x 24" wide 29" Height
Sinks that are 24" or smaller are shipped via FedEx Ground and have standard shipping costs.This only applies to orders shipping to the U.S. mainland.
If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes.
| ADA-110S242065B |
|
|
|
