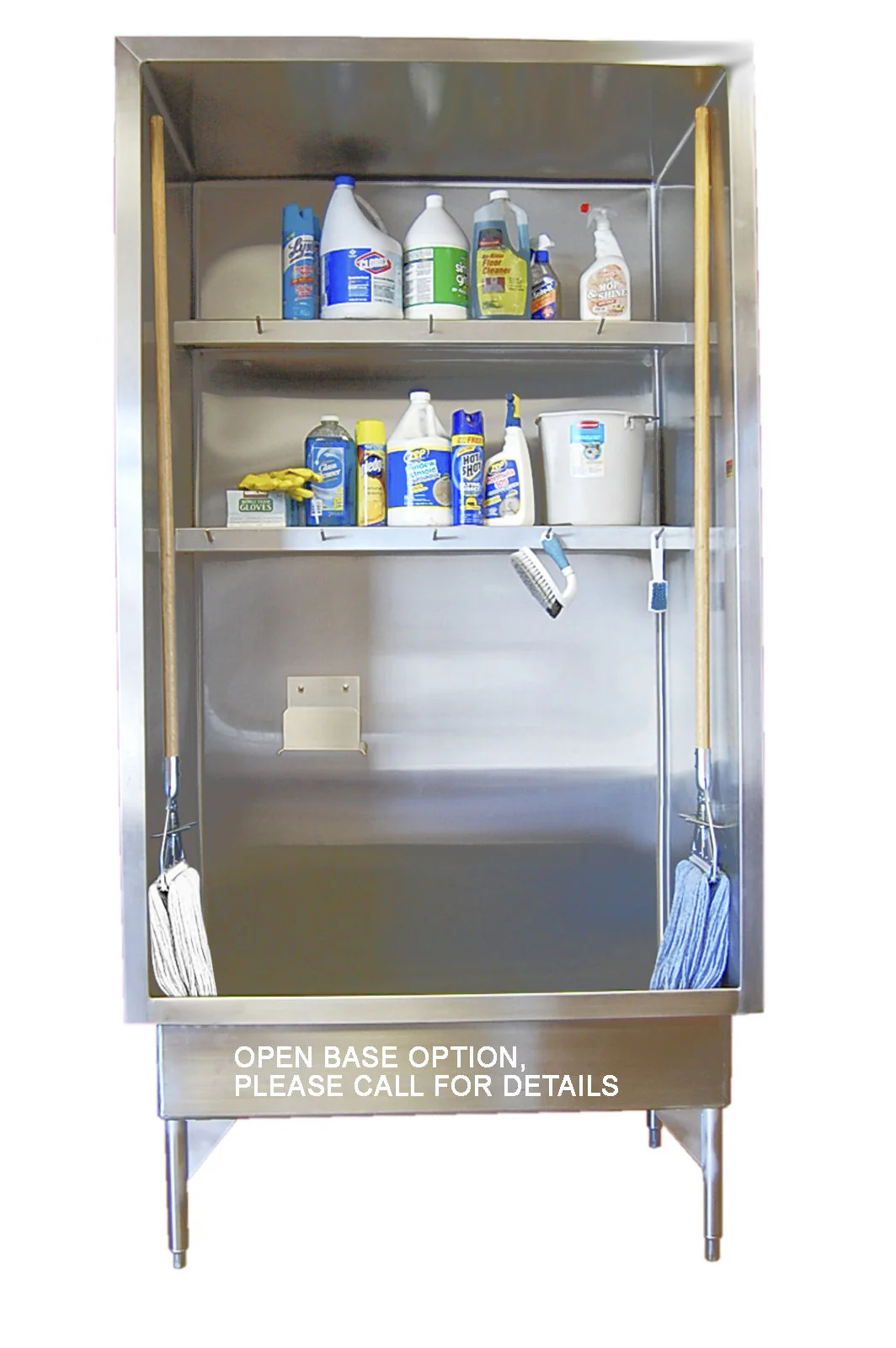

H.D. 18GA Mop Sink Cabinet Enclosure with Panel Doors 44" | MS944428DI

Shop our Stainless Steel Mop Sink Basin. If you do not see an option you need, please call us! We can fabricate any sink needed.

Model Number: MS944428DI



Features

Our sinks are crafted with the highest materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.

• Made from 18 gauge (0.05")  Heavy-Duty Stainless Steel Type 304 #4
• Made in The USA
• Fully seamless welded corners
• Fully polished to a brush finish No. 4
• Standard sink drain hole 3-1/2"  with 12" clearance between the bottom of the mop sink to the floor for easy relocating the drainage
• ETL and NSF Approved

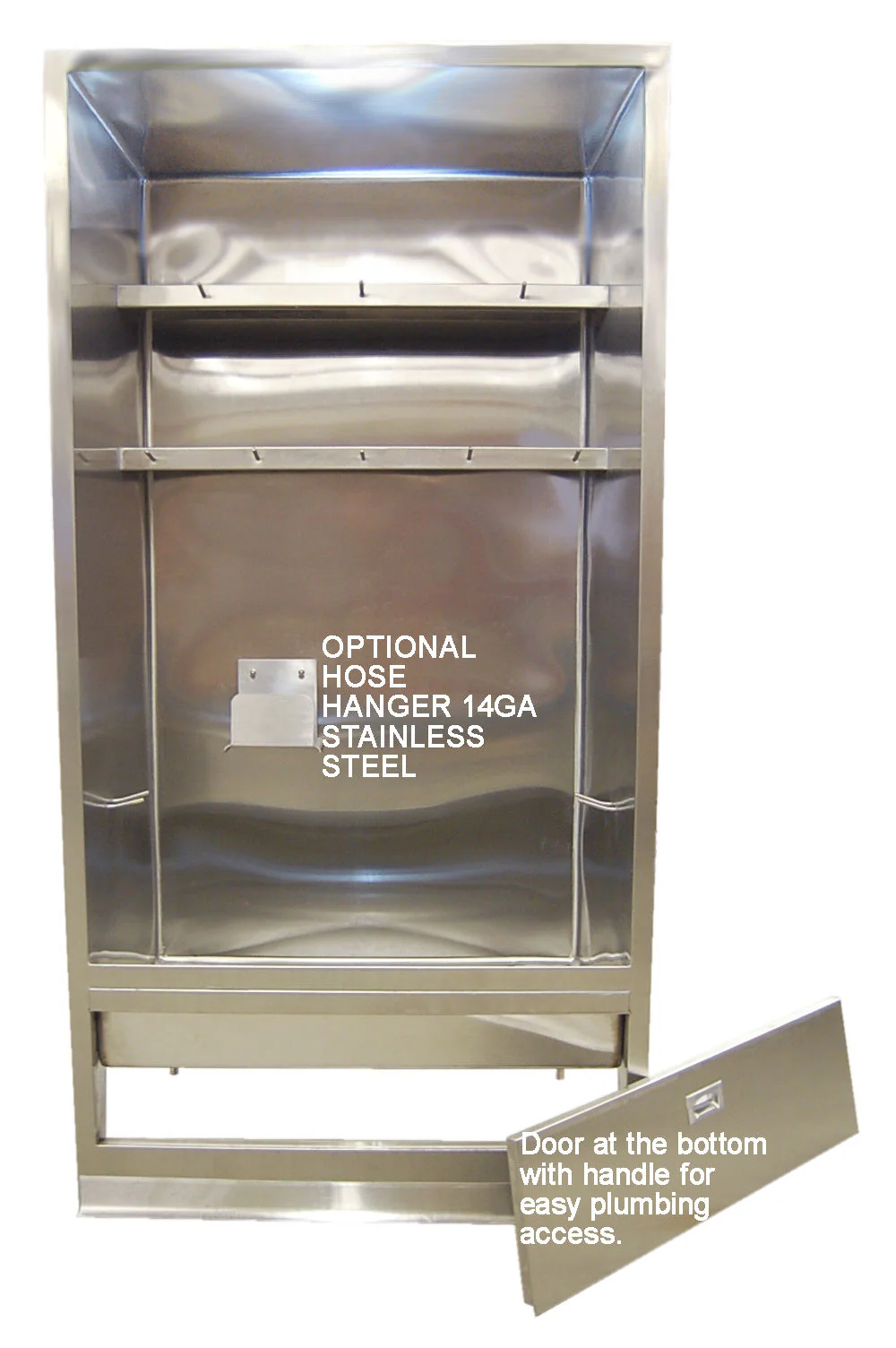

• Door at the bottom with handle for plumbing access Stainless Steel 18ga (0.05")

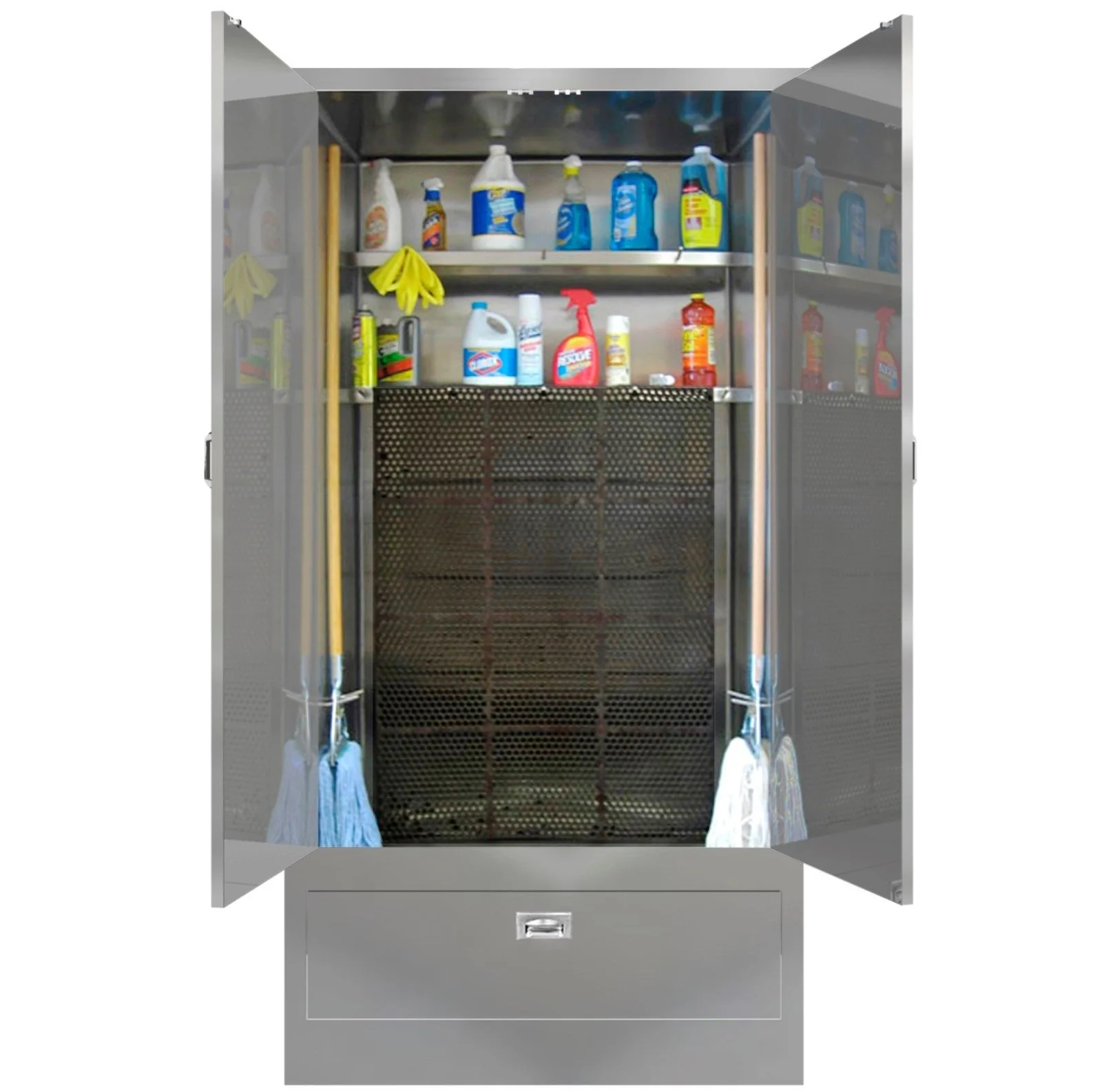

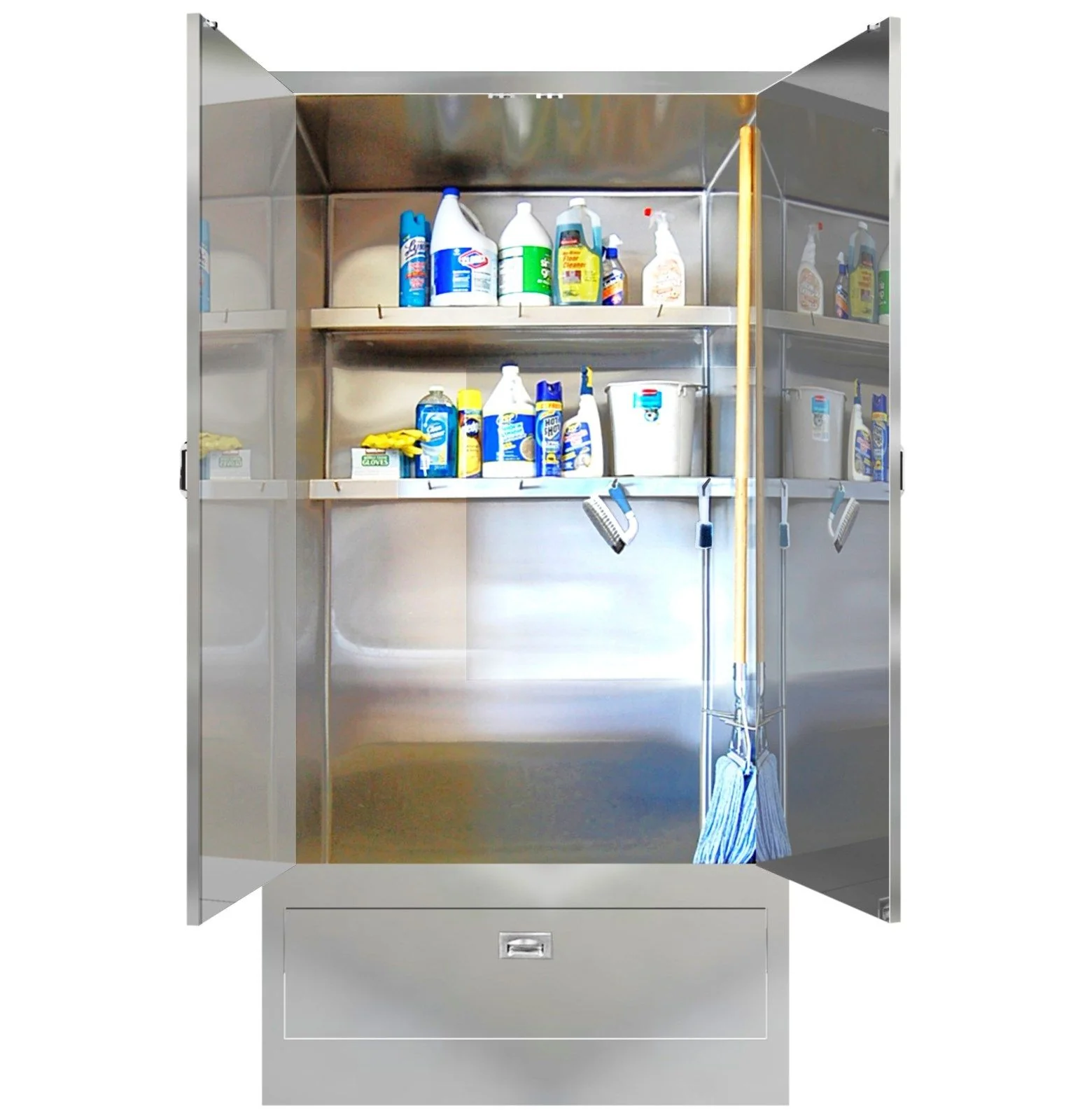

• 2 Double Panel Doors



Dimensions

Overall Dimensions

44" Long x 28" Wide x 94" Height

Bowl Interior

40-1/2" Long x 26" Wide x 12" Deep

Front Opening

40-1/2" Long x 80" Height

Included:



2	Heavy Duty Stainless Steel Rear legs diameter 1-5/8" OD 16ga (0.0625") with adjustable floor plate 1" height with welded triangle support plates stainless steel 16ga (0.0625") on 2 sides
2	12"x34-1/2" Stainless Steel 18ga (0.05") Shelves
3	1/4" Pin hangers On Upper Shelf
5	1/4" Pin hangers On Bottom Shelf
4	1/4" Pin hangers: Two (2) on left side panel and Two (2) on Right side panel for mops
1	Standard sink drain hole 3-1/2" and standard drain basket strainer with 12" clearance between the bottom of the mop sink to the floor for easy relocating the drainage.
1	Door at the bottom with handle for plumbing access Stainless Steel 18ga (0.05")
1	Stainless Steel 18ga (0.05") Front Base Coved
2	Double Panel Doors 73" x 19" x 3/4" 18ga (0.05") Front Panel & 20ga interior panel with inside reinforced channel
4	Stainless Steel 18ga (0.05") Brace channels 2 each side to strengthen the structure





Shipping

Estimated Weight: 545 lbs

Estimated Shipping Dimensions: 103" Long x 48" wide 36" Height

Mop sinks are shipped via a third-party freight carrier and have standard shipping costs. This only applies to orders shipping to the U.S. mainland.

If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes.
