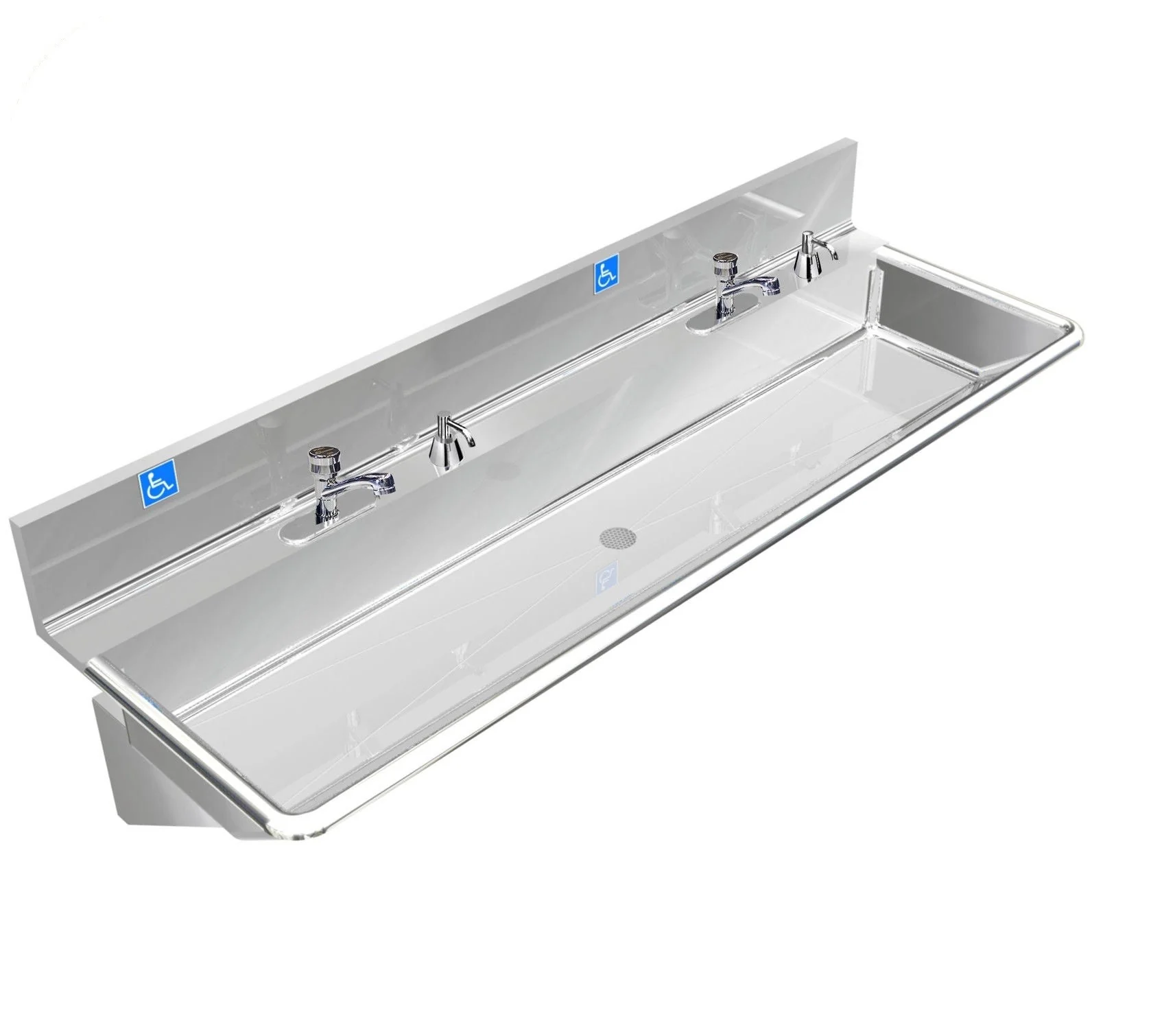

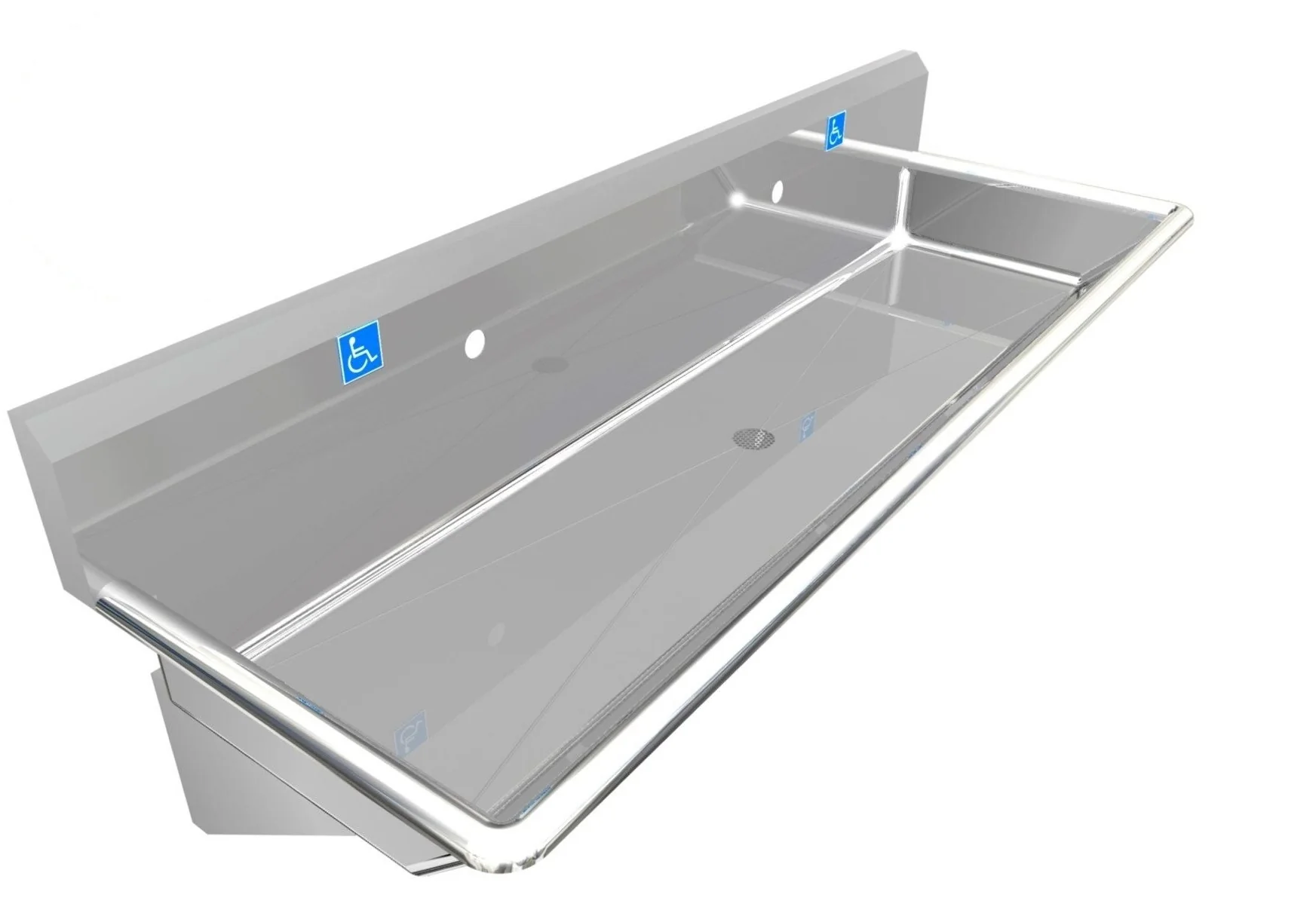

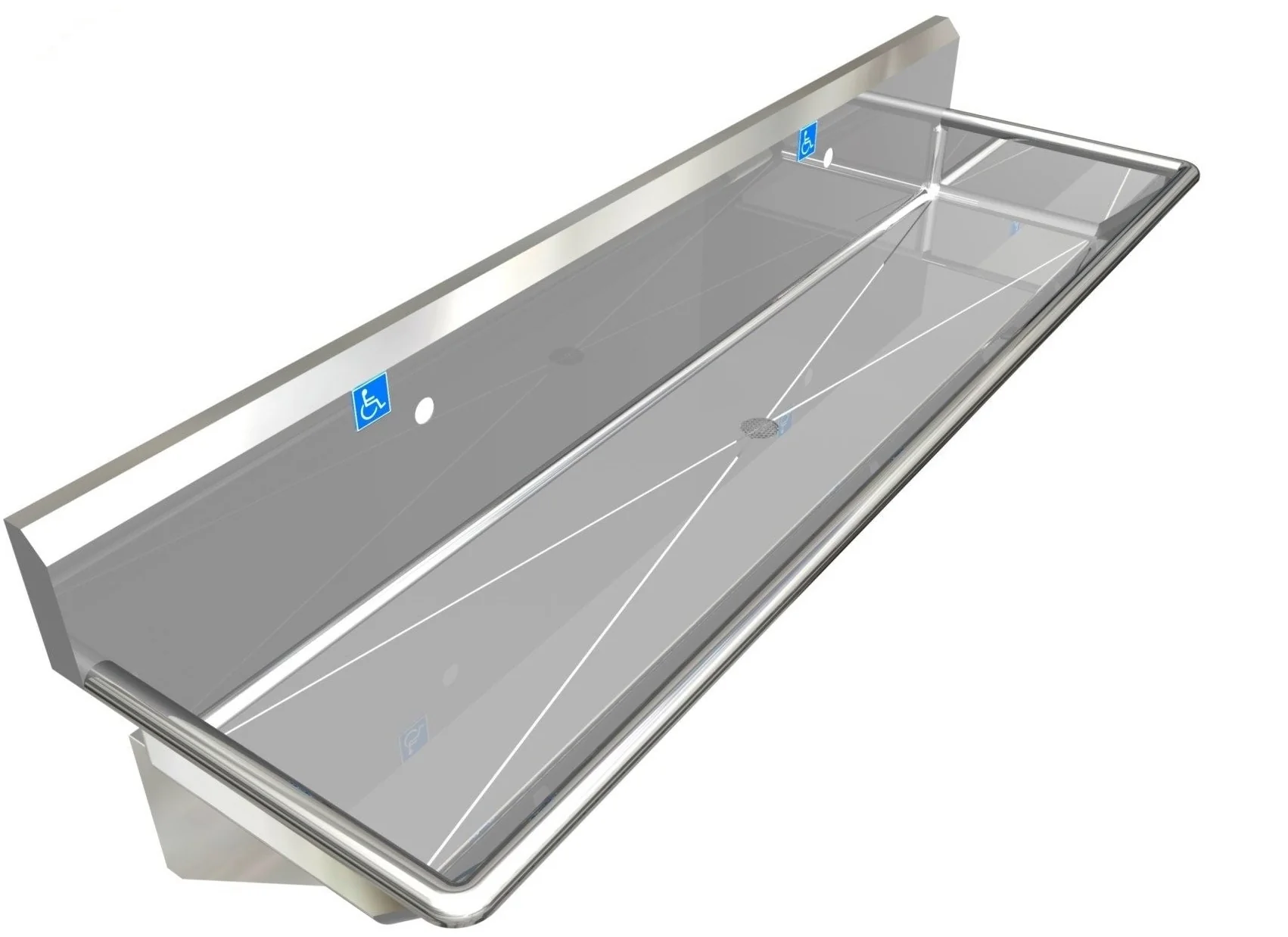

H.D. 14 GA Multi-Station Wash up Sink, 60" | ADA-D22M60206B

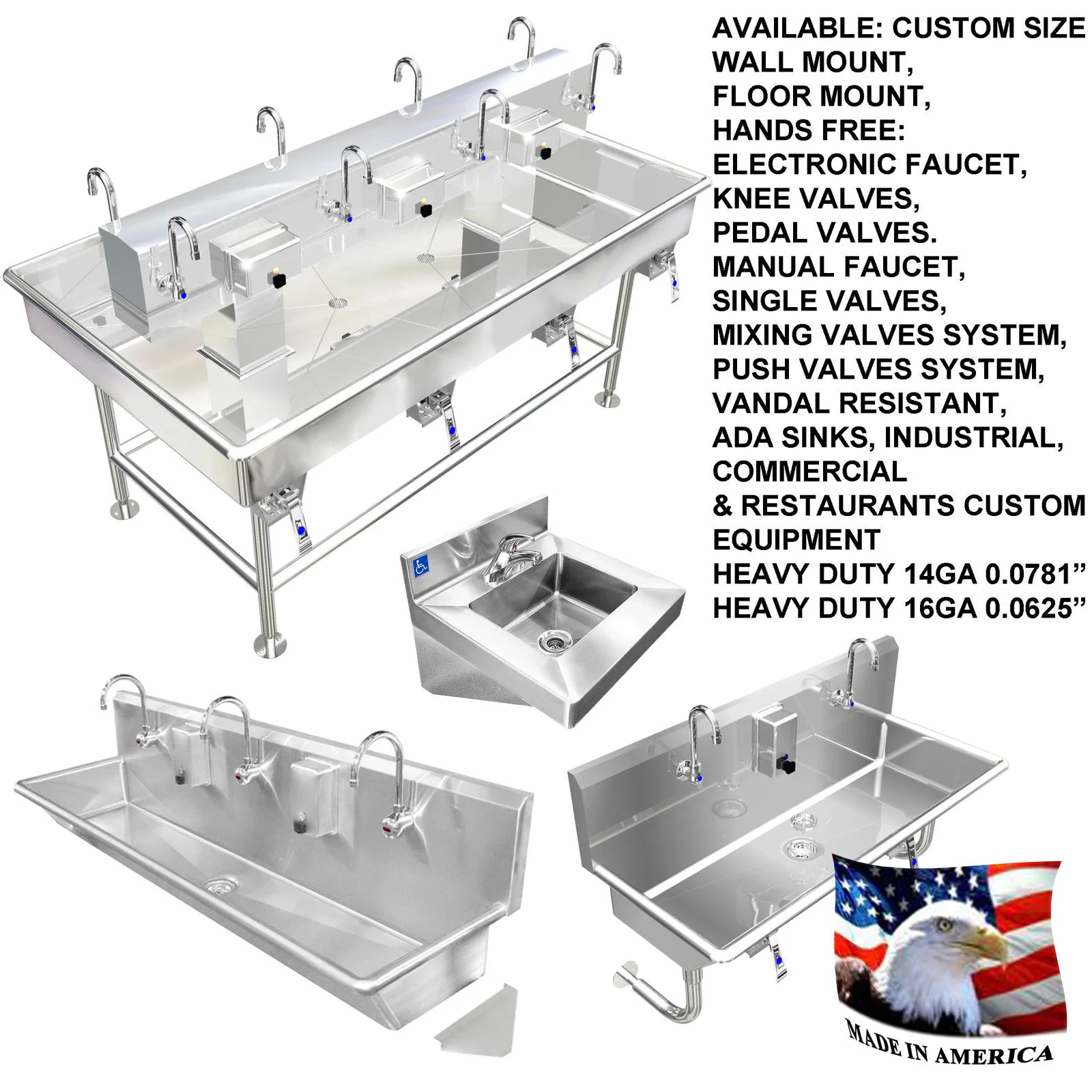

Shop our ADA-compliant stainless steel sink line. If you do not see an option you need, please call us! We can fabricate any sink needed.
Model Number: ADA-D22M60206B
Features
Our sinks are crafted with the highest materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.
- Made from 14 Gauge Heavy-Duty Stainless Steel Type 304 (0.0781") #4
- Made in the USA
- Fully seamless welded corners
- Fully polished to a brush finish No. 4

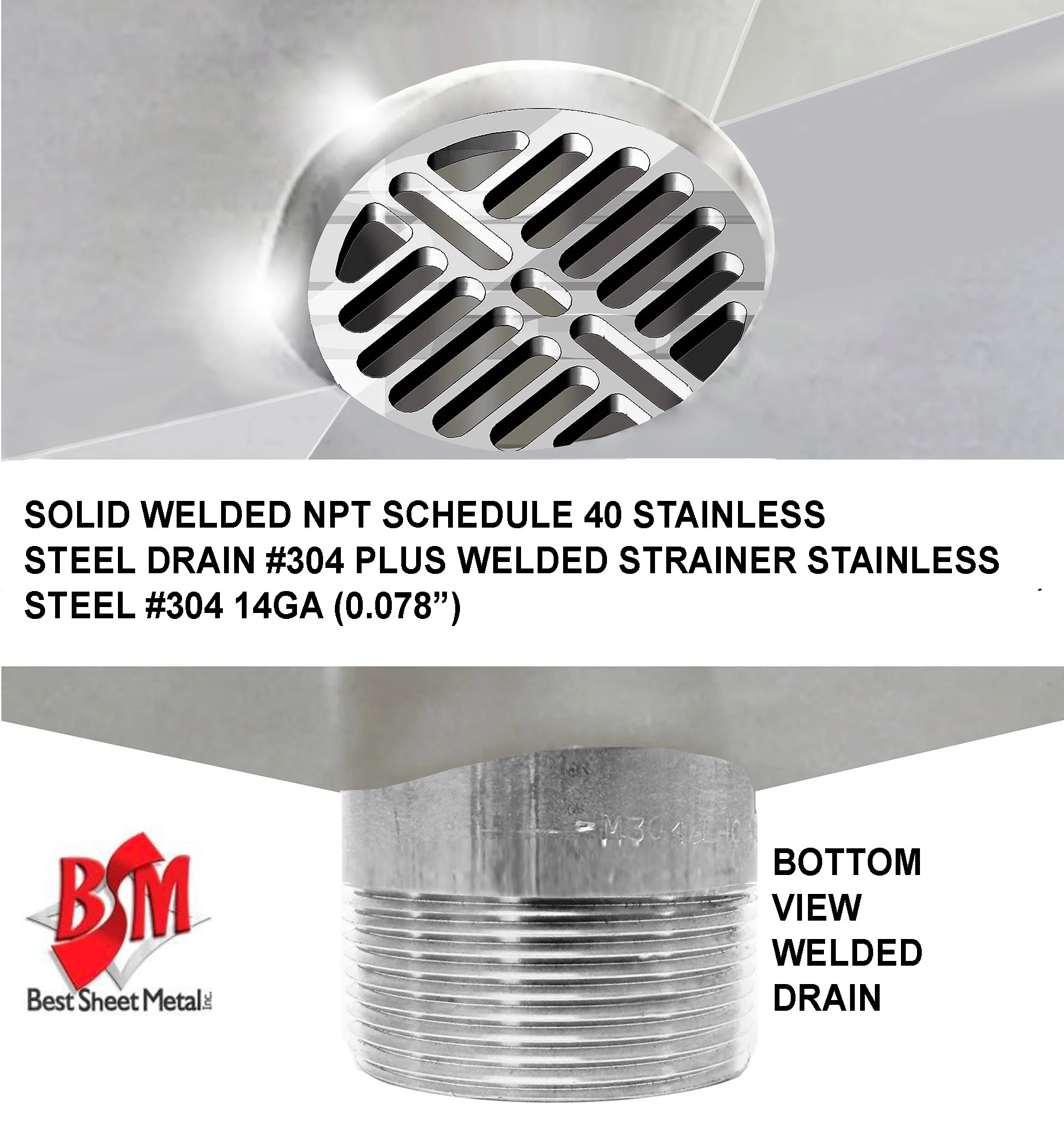

- Fully welded 1-1/2" Drain with fixed screen
- ETL and NSF Approved
- ADA Compliant
- With low profile backsplash for mirror ADA code 1127A.8.3.

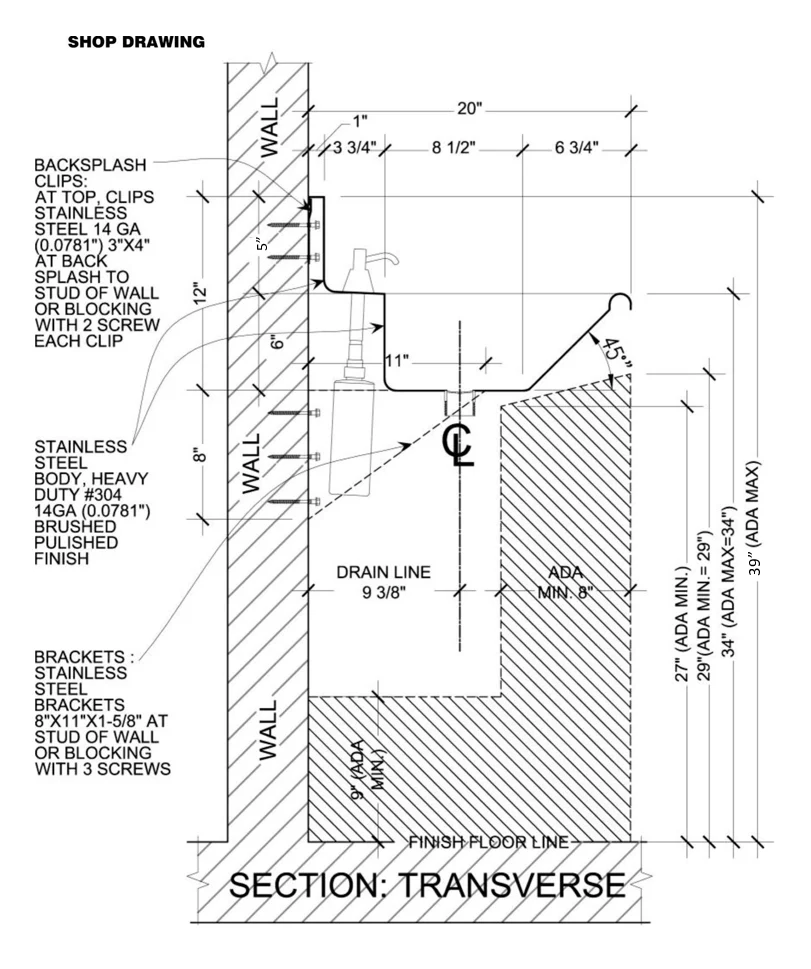

- Total height 39" from floor to top of backsplash

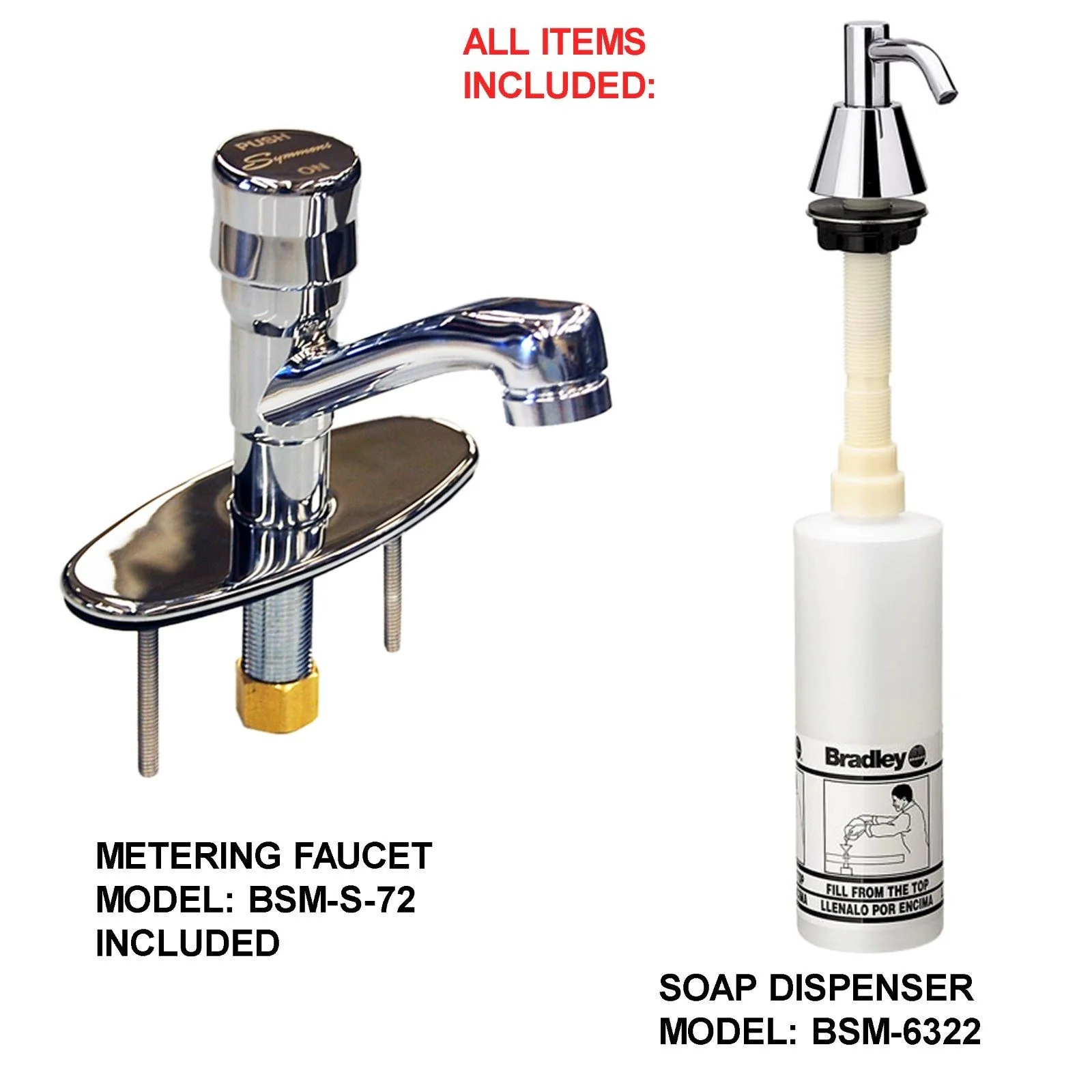

- Includes Deck Mounted Metering Faucet and Soap Dispenser

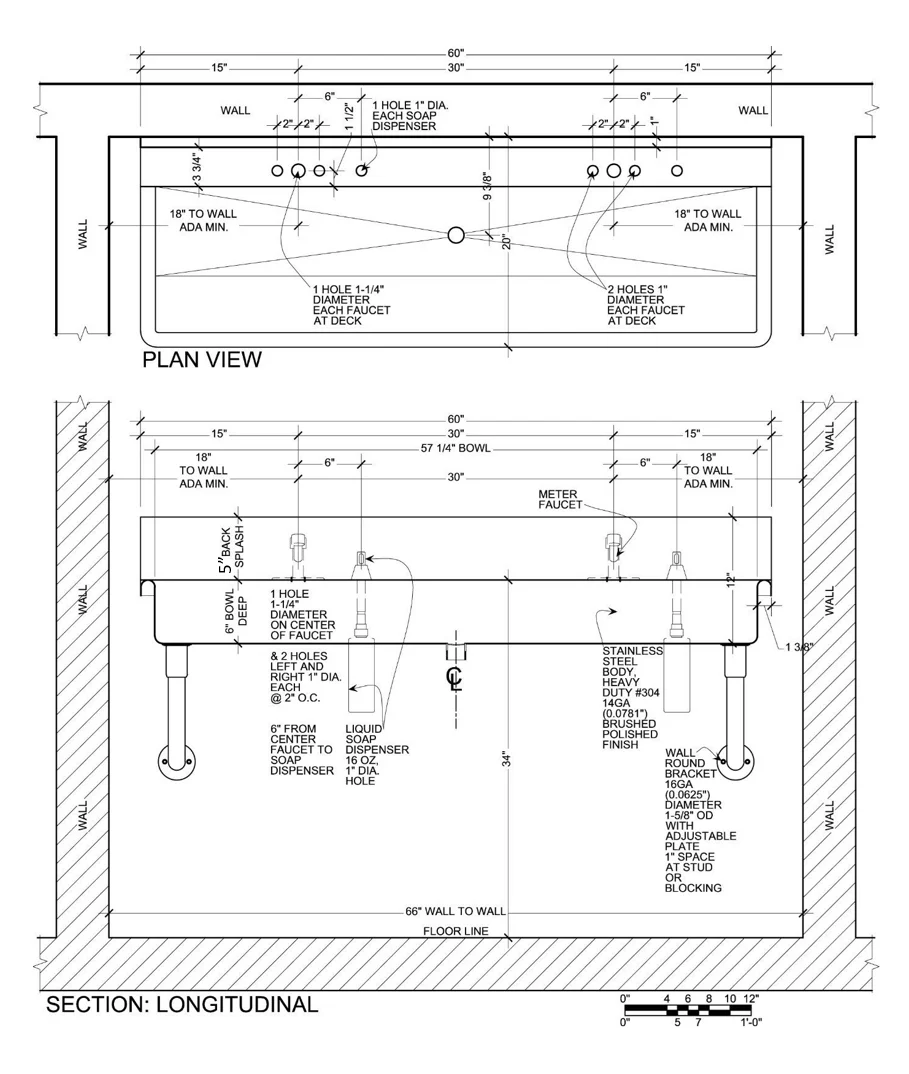

Dimensions
Sink dimensions:
60" Long x 20" Wide x 6" Deep
Back Splash Dimensions:
60" Long x 1" Wide x 5" High
Accessories | Mounting
|
|
Deck Mounted Metering Faucet Quantity 2:
|
|
|
Deck Mounted Soap Dispenser
Quantity 2:
|
Mounting:

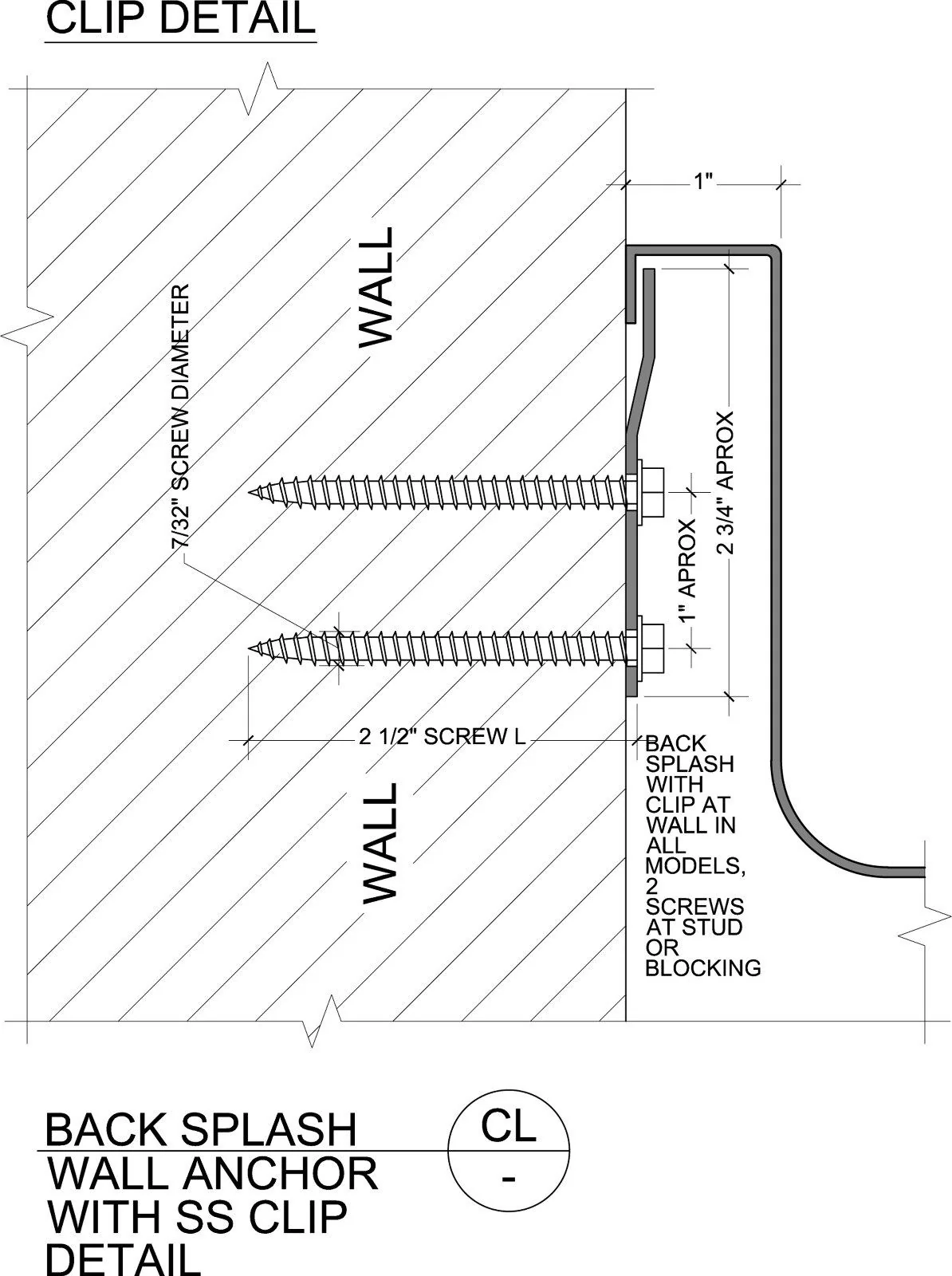

| 3 | Stainless Steel Wall clips 3"x 4" 14 gauge (0.0781") |
| 2 | Stainless Steel Brackets 8" x 10" x 1-5/8" 16ga (0.0625") |
| 14 | 2-1/2" Standard screws |
All accessories have a 1-year limited warranty.
Shipping
Estimated Weight: 120 lbs
Estimated Shipping Dimensions: 64" Long x 25" wide 30" Height
Sinks are shipped via a third-party freight carrier and have standard shipping costs. This only applies to orders shipping to the U.S. mainland.
If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes.
|
