H.D. 14GA Multi-Station Wash up Sink, 120" | ADA-140S1202066B

Shop our ADA-compliant stainless steel sink line. If you do not see an option you need, please call us! We can fabricate any sink needed.



Model Number:  ADA-140S1202066B

Features

Our sinks are crafted with the highest materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.

• Made from 14 Gauge Heavy-Duty Stainless Steel Type 304 (0.0781") #4
• Made in the USA
• Fully seamless welded corners
• Fully polished to a brush finish No. 4

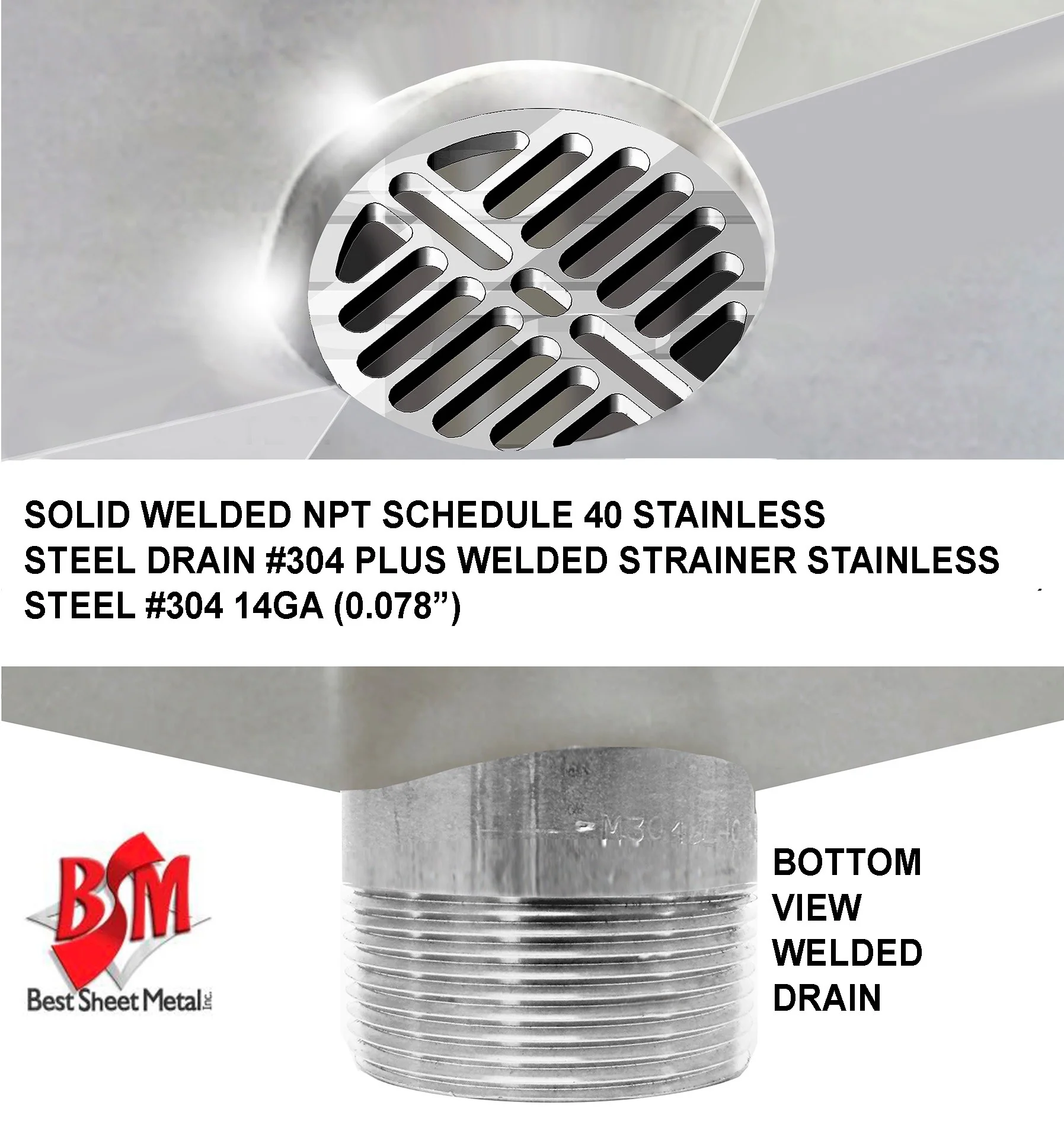

• Fully welded 1-1/2" Drain with fixed screen
• ETL and NSF Approved
• ADA Compliant
• With low profile backsplash for mirror ADA code 1127A.8.3.
• Total height 39" from floor to top of backsplash
• Sink Body Only

Dimensions

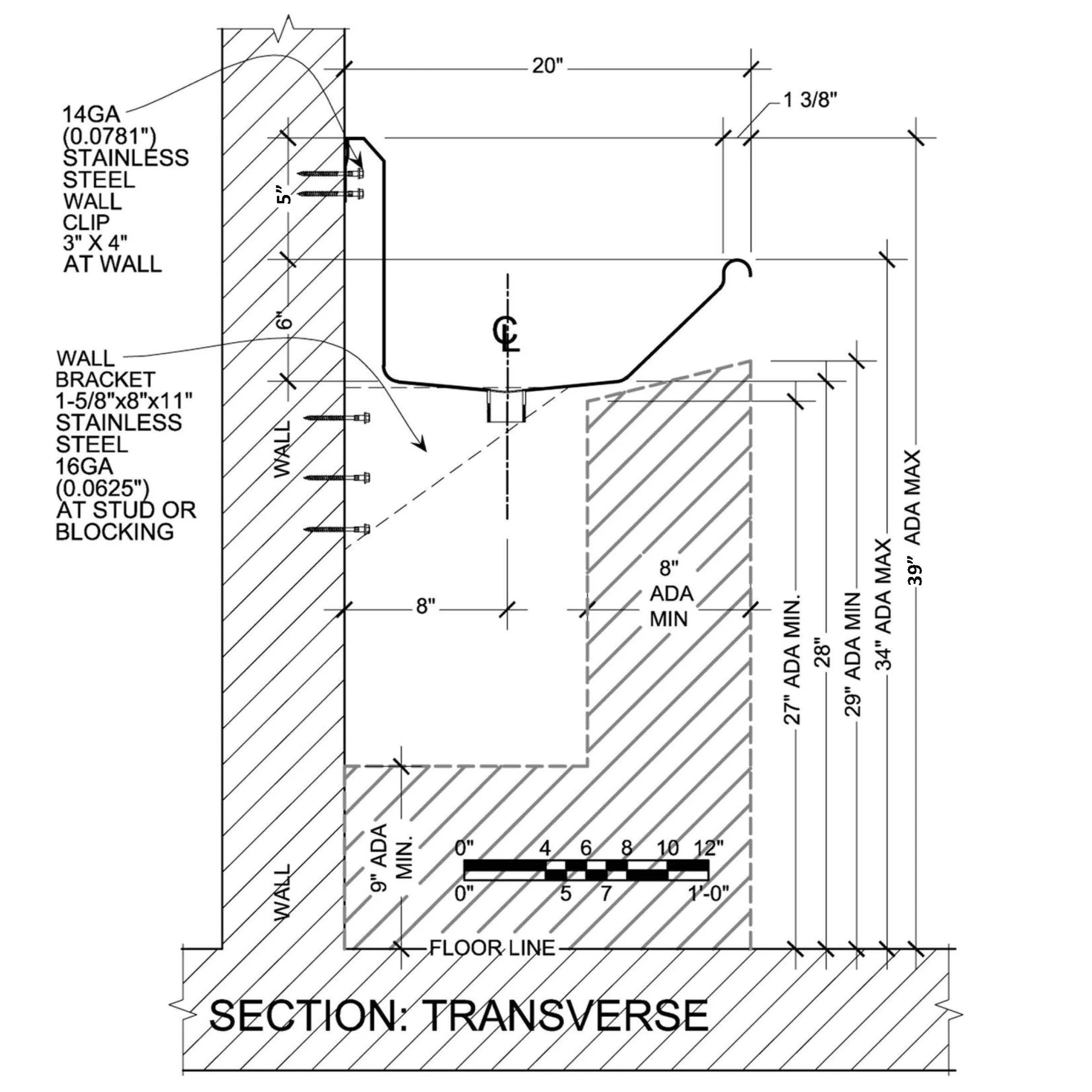

Sink dimensions:

120" Long x 20" Wide x 6" Deep

Back Splash Dimensions for all varieties

120" Long x 2" Wide x 5" High

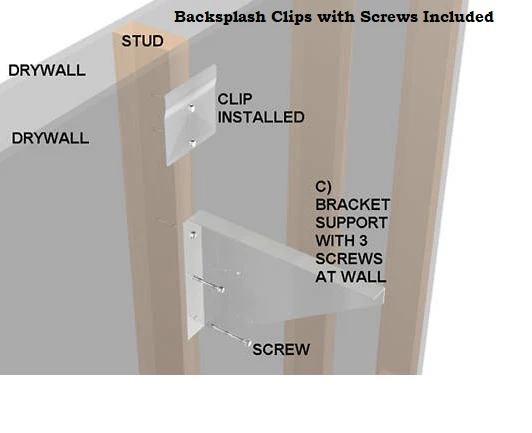

Mounting:

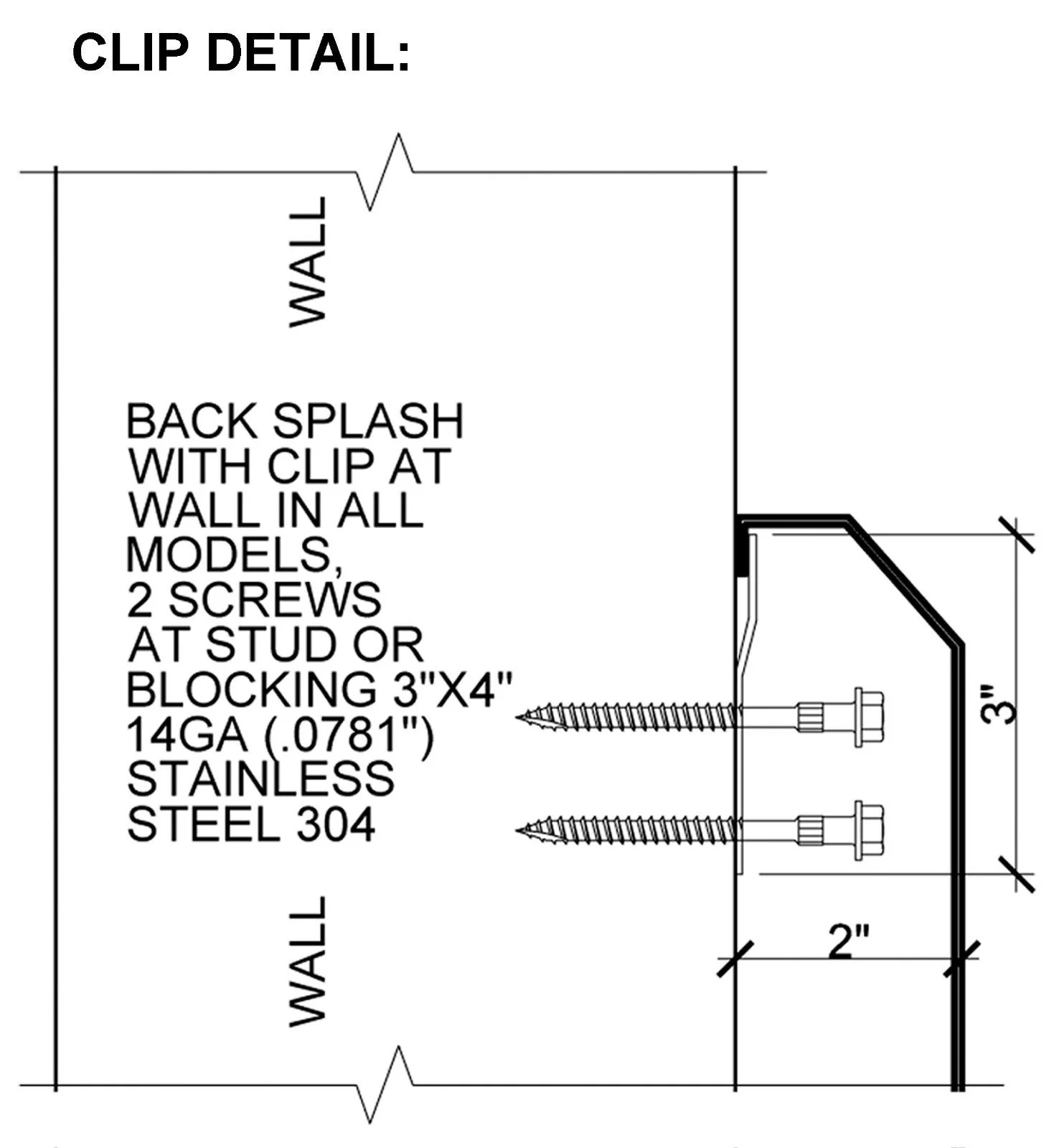

4	Stainless Steel Wall clips 3"x 4" 14 gauge (0.0781")
2	Stainless Steel Brackets 8" x 10" x 1-5/8" 16ga (0.0625")
16	2-1/2" Standard screws

All accessories have a 1-year limited warranty.

Shipping

Estimated Weight: 170 lbs

Estimated Shipping Dimensions: 130" Long x 25" wide 30" Height

Sinks are shipped via a third-party freight carrier and have standard shipping costs. This only applies to orders shipping to the U.S. mainland.

If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes.

PDF

ADA-140S1202066B
